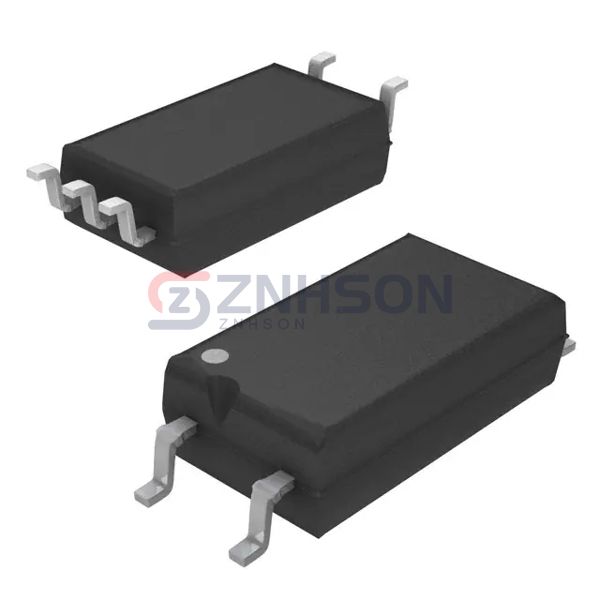

TCLT1105
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISO 5KV TRANS W/BASE 6SOP
$0.73
Available to order
Reference Price (USD)
3,000+
$0.22400
6,000+
$0.21600
15,000+
$0.21280
30,000+
$0.20800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your system's efficiency with TCLT1105 Optoisolators by Vishay Semiconductor Opto Division, designed for Photovoltaic Output applications. These isolators are perfect for isolating digital signals, protecting microcontrollers, and ensuring safe operation in high-voltage environments. Suitable for consumer electronics, aerospace, and defense applications, they deliver consistent performance under extreme conditions. Get started today contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 50% @ 5mA
- Current Transfer Ratio (Max): 150% @ 5mA
- Turn On / Turn Off Time (Typ): 6µs, 5µs
- Rise / Fall Time (Typ): 3µs, 4.7µs
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 80V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.295", 7.50mm Width), 5 Leads
- Supplier Device Package: 6-SOP, 5 Pin
