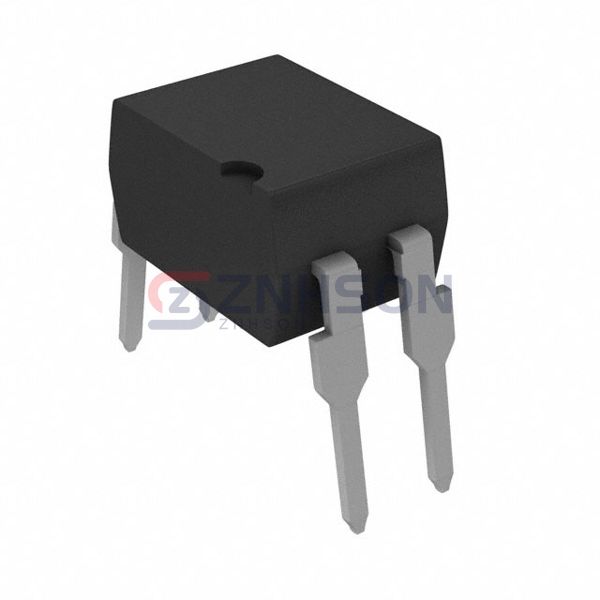

TCET1102
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISOLATR 5KV TRANSISTOR 4-DIP
$0.55
Available to order
Reference Price (USD)
1+
$0.54000
10+
$0.42100
25+
$0.35120
100+
$0.30240
250+
$0.27000
500+
$0.23220
1,000+
$0.17928
4,000+
$0.16200
8,000+
$0.15120
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronics with Vishay Semiconductor Opto Division's TCET1102 Optoisolators - Transistor, Photovoltaic Output, offering superior isolation and signal transmission. These components are perfect for applications requiring high voltage separation, such as power supplies, motor controls, and PLC systems. With robust construction and long-term durability, our optoisolators ensure seamless performance in demanding environments. Interested in learning more? Submit your inquiry now and let our experts assist you!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 63% @ 10mA
- Current Transfer Ratio (Max): 125% @ 10mA
- Turn On / Turn Off Time (Typ): 6µs, 5µs
- Rise / Fall Time (Typ): 3µs, 4.7µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 4-DIP (0.300", 7.62mm)
- Supplier Device Package: 4-DIP
