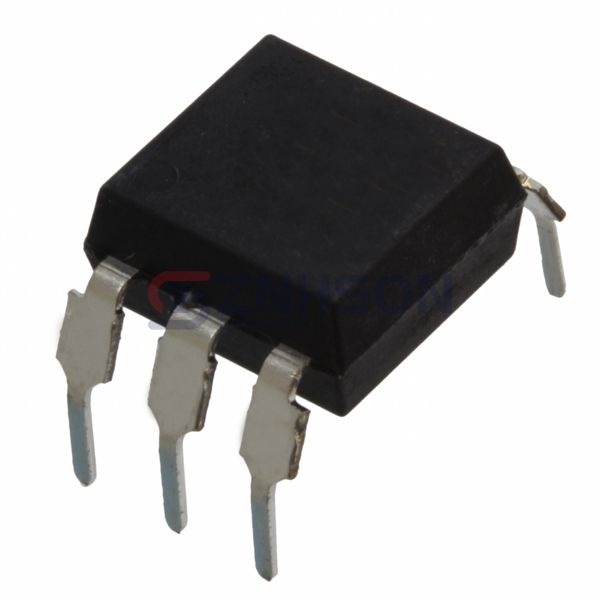

TCDT1103G
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISOLATOR 5KV TRANS 6DIP
$0.68
Available to order
Reference Price (USD)
1+
$0.67000
10+
$0.52300
25+
$0.43560
100+
$0.37520
250+
$0.33500
500+
$0.28810
2,000+
$0.20100
6,000+
$0.18760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance circuit safety with TCDT1103G Optoisolators from Vishay Semiconductor Opto Division, featuring Photovoltaic Output for efficient signal transfer. Ideal for use in renewable energy systems, automotive electronics, and industrial machinery, these isolators provide excellent electrical isolation and noise reduction. Their compact design and high reliability make them a top choice for engineers worldwide. Ready to secure your components? Request a quote today and experience the Vishay Semiconductor Opto Division difference!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 100% @ 10mA
- Current Transfer Ratio (Max): 200% @ 10mA
- Turn On / Turn Off Time (Typ): 11µs, 7µs
- Rise / Fall Time (Typ): 7µs, 6.7µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 32V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.400", 10.16mm)
- Supplier Device Package: 6-DIP
