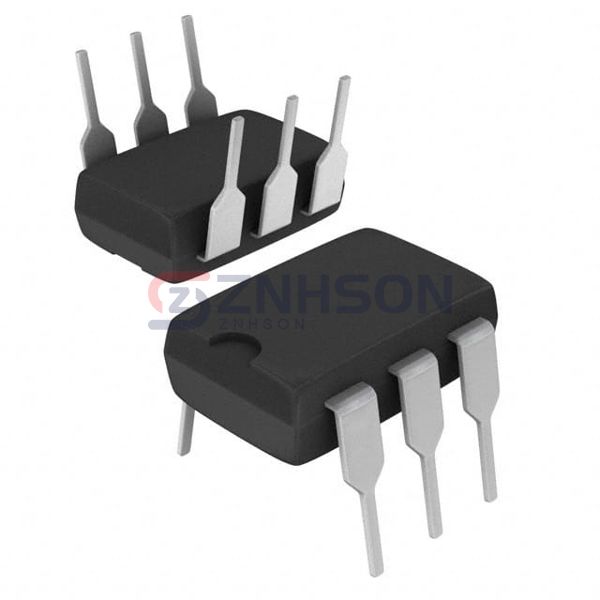

TCDT1102
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISOLATOR 5KV TRANS 6DIP
$0.68
Available to order
Reference Price (USD)
1+
$0.67000
10+
$0.52300
25+
$0.43560
100+
$0.37520
250+
$0.33500
500+
$0.28810
2,000+
$0.20100
6,000+
$0.18760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronics with Vishay Semiconductor Opto Division's TCDT1102 Optoisolators - Transistor, Photovoltaic Output, offering superior isolation and signal transmission. These components are perfect for applications requiring high voltage separation, such as power supplies, motor controls, and PLC systems. With robust construction and long-term durability, our optoisolators ensure seamless performance in demanding environments. Interested in learning more? Submit your inquiry now and let our experts assist you!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 63% @ 10mA
- Current Transfer Ratio (Max): 125% @ 10mA
- Turn On / Turn Off Time (Typ): 11µs, 7µs
- Rise / Fall Time (Typ): 7µs, 6.7µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 32V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.300", 7.62mm)
- Supplier Device Package: 6-DIP
