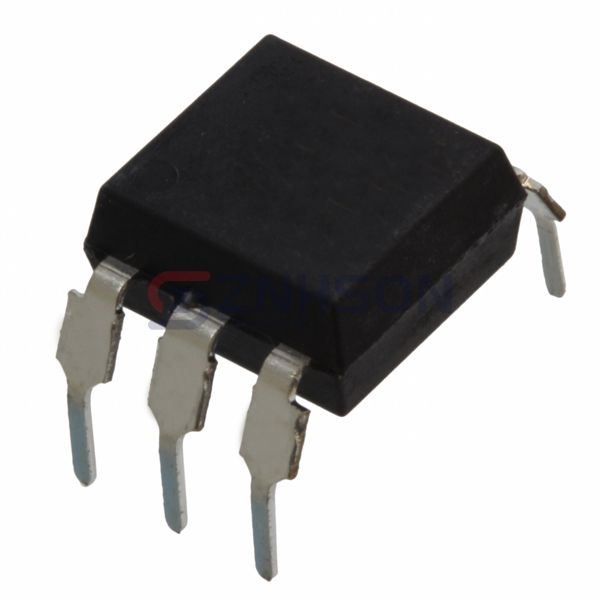

TCDT1100G
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISOLATOR 5KV TRANS 6DIP
$0.21
Available to order
Reference Price (USD)
2,000+
$0.20100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your system's efficiency with TCDT1100G Optoisolators by Vishay Semiconductor Opto Division, designed for Photovoltaic Output applications. These isolators are perfect for isolating digital signals, protecting microcontrollers, and ensuring safe operation in high-voltage environments. Suitable for consumer electronics, aerospace, and defense applications, they deliver consistent performance under extreme conditions. Get started today contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 40% @ 10mA
- Current Transfer Ratio (Max): -
- Turn On / Turn Off Time (Typ): 11µs, 7µs
- Rise / Fall Time (Typ): 7µs, 6.7µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 32V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.400", 10.16mm)
- Supplier Device Package: 6-DIP
