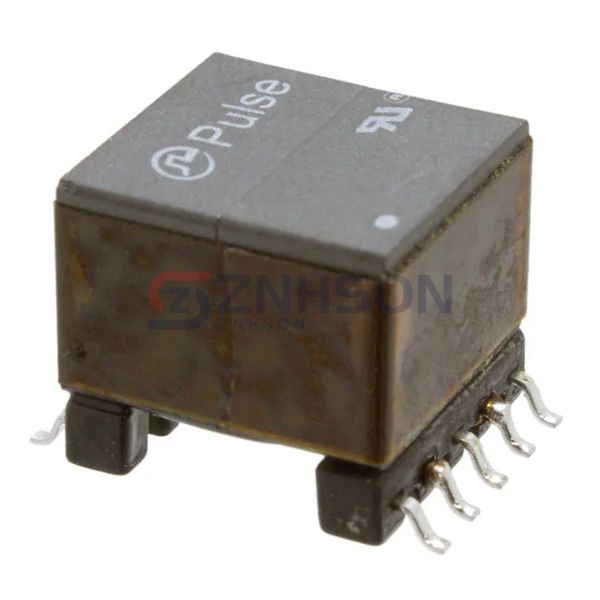

T6003NL
Pulse Electronics Network
Pulse Electronics Network
TRANSFORMER AUDIO 1:1 SMD
$0.00
Available to order
Reference Price (USD)
1+
$6.50000
10+
$4.94000
25+
$4.81000
60+
$4.42000
120+
$4.16000
300+
$4.03000
540+
$3.90000
1,020+
$3.77000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize audio performance with Pulse Electronics Network T6003NL Audio Transformers, offering industry-leading quality and efficiency. These transformers are perfect for high-end audio equipment, delivering pristine sound reproduction. Choose Pulse Electronics Network for components that set the standard. Submit your inquiry now and take your audio projects to the next level.
Specifications
- Product Status: Discontinued at Digi-Key
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600
- DC Resistance (DCR) - Primary: 55Ohm
- DC Resistance (DCR) - Secondary: 70Ohm
- Transformer Type: General Purpose
- Frequency Range: -
- Frequency Response: -
- Voltage - Isolation: 1500Vrms
- Insertion Loss: 1dB @ 200Hz, 1dB @ 1kHz, 1dB @ 20kHz, 1.9dB @ 100kHz
- Return Loss: 20dB @ 200Hz, 30dB @ 1kHz, 25dB @ 10kHz
- Power Level: -
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Surface Mount
- Size / Dimension: 0.530" L x 0.516" W (13.46mm x 13.11mm)
- Height - Seated (Max): 0.485" (12.32mm)
- Termination Style: Gull Wing
