STP60N55F3
STMicroelectronics
STMicroelectronics
MOSFET N-CH 55V 80A TO220AB
$0.00
Available to order
Reference Price (USD)
1,000+
$1.40070
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For cutting-edge Transistors - FETs, MOSFETs - Single solutions, choose STP60N55F3 by STMicroelectronics. A key player in Discrete Semiconductor Products, this MOSFET boasts low RDS(on), high current capacity, and excellent switching characteristics. Its applications span across telecom infrastructure, medical devices, and consumer electronics. Elevate your designs with STP60N55F3 inquire now for more details!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 55 V
- Current - Continuous Drain (Id) @ 25°C: 80A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 8.5mOhm @ 32A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 45 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2200 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 110W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220
- Package / Case: TO-220-3
Related Products
STMicroelectronics
STF12PF06
Infineon Technologies
IRF7811APBF
onsemi
BXL4001
Fairchild Semiconductor
FDB15N50_NL
Infineon Technologies
IRL3103D1PBF
Vishay Siliconix
IRLR120TR
Vishay Siliconix
SI3424DV-T1-E3
Infineon Technologies

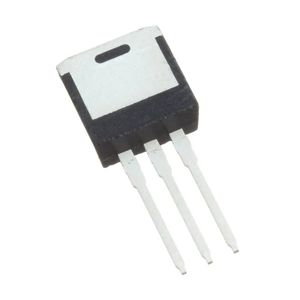

IPI50R299CPXKSA1
