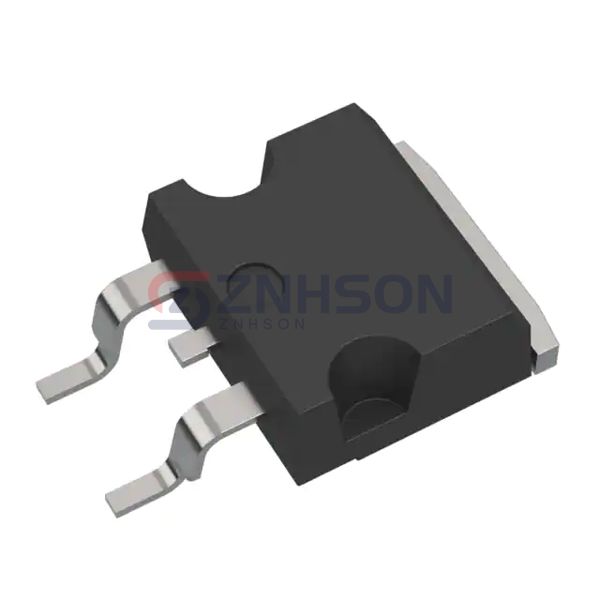

STH13N120K5-2AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 1200V 12A H2PAK-2
$11.23
Available to order
Reference Price (USD)
1+
$11.23000
500+
$11.1177
1000+
$11.0054
1500+
$10.8931
2000+
$10.7808
2500+
$10.6685
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with STH13N120K5-2AG by STMicroelectronics, a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, STH13N120K5-2AG ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 12A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 690mOhm @ 6A, 10V
- Vgs(th) (Max) @ Id: 5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 44.2 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 1370 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 250W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: H2Pak-2
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
