STGWA30H60DFB
STMicroelectronics
STMicroelectronics
IGBT
$0.00
Available to order
Reference Price (USD)
600+
$2.11427
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGWA30H60DFB Single IGBT by STMicroelectronics sets the standard for power semiconductor excellence. Designed for applications like electric vehicles and industrial machinery, it offers high current density and minimal thermal resistance. Key benefits include easy integration, superior durability, and compliance with international certifications. Partner with STMicroelectronics for cutting-edge solutions tailored to your needs. Contact us now to discuss specifications and delivery options!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 60 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 30A
- Power - Max: 260 W
- Switching Energy: 383µJ (on), 293µJ (off)
- Input Type: Standard
- Gate Charge: 149 nC
- Td (on/off) @ 25°C: 37ns/146ns
- Test Condition: 400V, 30A, 10Ohm, 15V
- Reverse Recovery Time (trr): 53 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247 Long Leads
Related Products
IXYS
IXGX50N60BD1
Infineon Technologies
IHW30N90TFKSA1
Infineon Technologies
IRG4BC20U-S
IXYS
IXGP20N120BD1
IXYS
IXGX60N60C2D1
IXYS
IXGR32N170AH1
onsemi
TIG111BF
onsemi

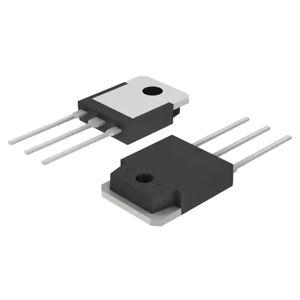

FGA50N60LS
