STGPL6NC60D
STMicroelectronics
STMicroelectronics
IGBT 600V 14A 56W TO220
$0.00
Available to order
Reference Price (USD)
1,000+
$0.84803
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize energy efficiency with STGPL6NC60D Single IGBTs by STMicroelectronics, a trusted name in discrete semiconductors. Suitable for solar inverters, motor controllers, and more, these transistors feature low conduction loss and high switching frequency. Their robust design ensures long-term performance even in harsh environments. Choose STGPL6NC60D for your next project and experience the STMicroelectronics difference. Submit your inquiry today for expert assistance!
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 14 A
- Current - Collector Pulsed (Icm): 18 A
- Vce(on) (Max) @ Vge, Ic: 2.9V @ 15V, 3A
- Power - Max: 56 W
- Switching Energy: 46.5µJ (on), 23.5µJ (off)
- Input Type: Standard
- Gate Charge: 12 nC
- Td (on/off) @ 25°C: 6.7ns/46ns
- Test Condition: 390V, 3A, 10Ohm, 15V
- Reverse Recovery Time (trr): 50 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220
Related Products
Infineon Technologies
IRG4BC10UPBF
IXYS
IXGA12N60BD1
IXYS
IXGR39N60BD1
Fairchild Semiconductor
ISL9V2040P3
STMicroelectronics
STGW35NC120HD
Infineon Technologies
IRGB5B120KDPBF
STMicroelectronics
STGP12NB60K
Infineon Technologies
SIGC04T60EX1SA2
Renesas Electronics America Inc

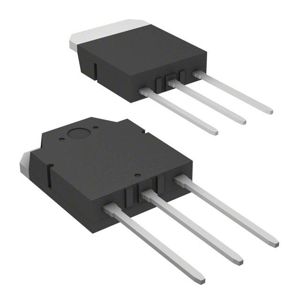

RJH60D7DPK-00#T0
