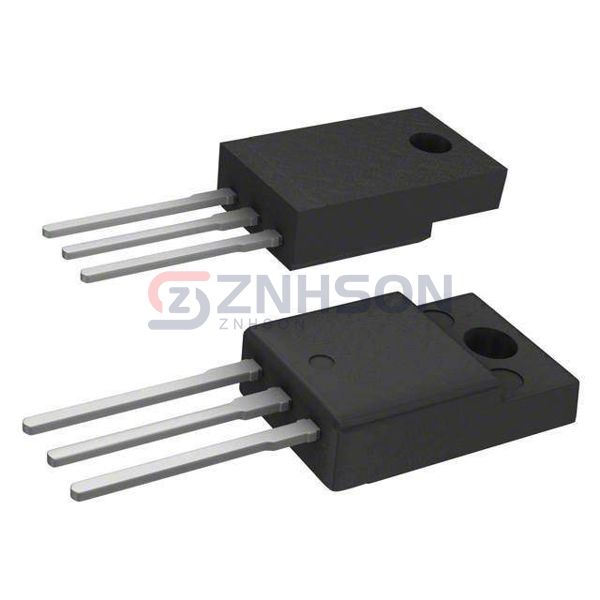

STGP10NB60SFP
STMicroelectronics
STMicroelectronics
IGBT 600V 23A 25W TO220
$0.00
Available to order
Reference Price (USD)
1,000+
$0.79018
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGP10NB60SFP Single IGBT from STMicroelectronics delivers unmatched performance in power conversion and control. Ideal for UPS systems, induction heating, and industrial automation, this transistor combines high efficiency with rugged reliability. Features such as short-circuit protection and low EMI make it a standout choice. STMicroelectronics's commitment to innovation ensures STGP10NB60SFP meets the demands of modern electronics. Get in touch for bulk orders and customization options!
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 23 A
- Current - Collector Pulsed (Icm): 80 A
- Vce(on) (Max) @ Vge, Ic: 1.75V @ 15V, 10A
- Power - Max: 25 W
- Switching Energy: 600µJ (on), 5mJ (off)
- Input Type: Standard
- Gate Charge: 33 nC
- Td (on/off) @ 25°C: 700ns/1.2µs
- Test Condition: 480V, 10A, 1kOhm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220FP
