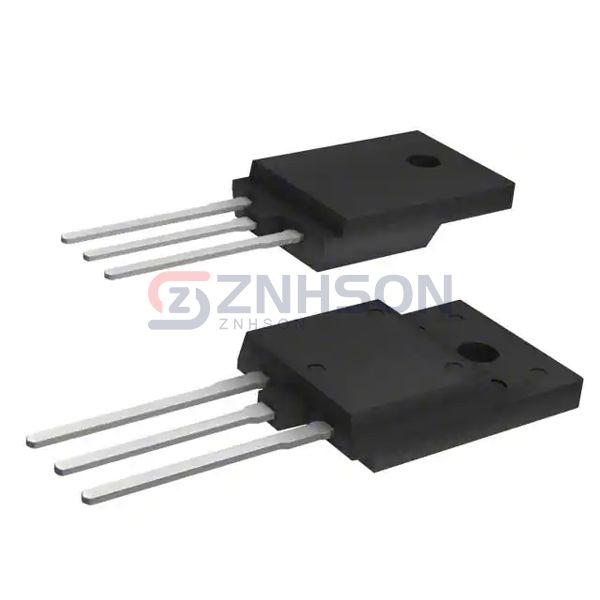

STGFW20H65FB
STMicroelectronics
STMicroelectronics
IGBT 650V 40A 52W TO3PF
$3.79
Available to order
Reference Price (USD)
1+
$3.98000
30+
$3.37833
120+
$2.92792
510+
$2.49249
1,020+
$2.10210
2,520+
$2.00200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your power electronics with STGFW20H65FB Single IGBTs by STMicroelectronics, engineered for precision and durability. Perfect for inverters, welding equipment, and automotive applications, these transistors provide fast switching speeds and excellent thermal stability. Key features include high voltage tolerance, low power loss, and compact design. Trust STMicroelectronics for top-quality components that meet global standards. Request a quote now to learn more about how STGFW20H65FB can enhance your projects.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 80 A
- Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 20A
- Power - Max: 52 W
- Switching Energy: 77µJ (on), 170µJ (off)
- Input Type: Standard
- Gate Charge: 120 nC
- Td (on/off) @ 25°C: 30ns/139ns
- Test Condition: 400V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3PFM, SC-93-3
- Supplier Device Package: TO-3PF
