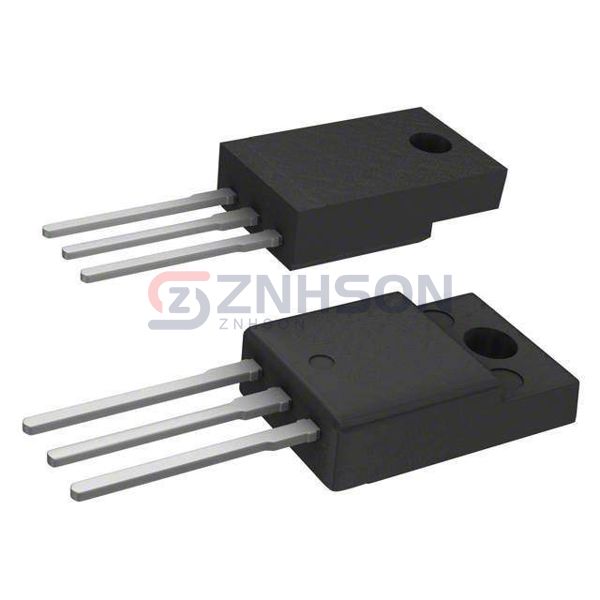

STGF20NB60S
STMicroelectronics
STMicroelectronics
IGBT 600V 24A 40W TO220FP
$0.00
Available to order
Reference Price (USD)
1+
$3.25000
50+
$2.77840
100+
$2.39490
500+
$2.00116
1,000+
$1.69024
2,500+
$1.58660
5,000+
$1.56933
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGF20NB60S Single IGBT by STMicroelectronics sets the standard for power semiconductor excellence. Designed for applications like electric vehicles and industrial machinery, it offers high current density and minimal thermal resistance. Key benefits include easy integration, superior durability, and compliance with international certifications. Partner with STMicroelectronics for cutting-edge solutions tailored to your needs. Contact us now to discuss specifications and delivery options!
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 24 A
- Current - Collector Pulsed (Icm): 70 A
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 20A
- Power - Max: 40 W
- Switching Energy: 840µJ (on), 7.4mJ (off)
- Input Type: Standard
- Gate Charge: 83 nC
- Td (on/off) @ 25°C: 92ns/1.1µs
- Test Condition: 480V, 20A, 100Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220FP
