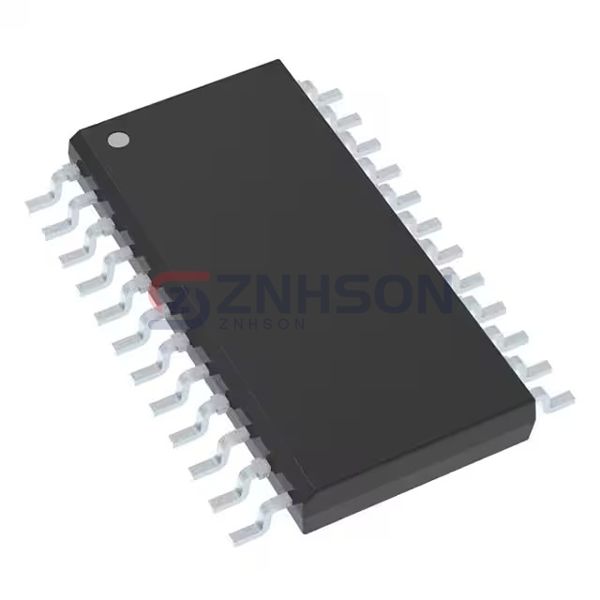

STGAP1STR
STMicroelectronics
STMicroelectronics
DGTL ISO 2.5KV 1CH GATE DVR 24SO
$0.00
Available to order
Reference Price (USD)
1,000+
$4.05000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your systems with STMicroelectronics STGAP1STR Gate Driver Isolators, engineered for superior isolation and efficiency. Key features include low propagation delay, high common-mode transient immunity, and wide temperature range compatibility. Perfect for renewable energy systems, automation controls, and medical equipment, these isolators deliver unmatched performance. Ready to optimize your design? Request a quote now!
Specifications
- Product Status: Obsolete
- Technology: Magnetic Coupling
- Number of Channels: 1
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): -
- Propagation Delay tpLH / tpHL (Max): 130ns, 130ns
- Pulse Width Distortion (Max): 10ns
- Rise / Fall Time (Typ): 25ns, 25ns (Max)
- Current - Output High, Low: 2.5A, 2.5A
- Current - Peak Output: -
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 4.5V ~ 36V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 24-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 24-SO
- Approval Agency: UL
