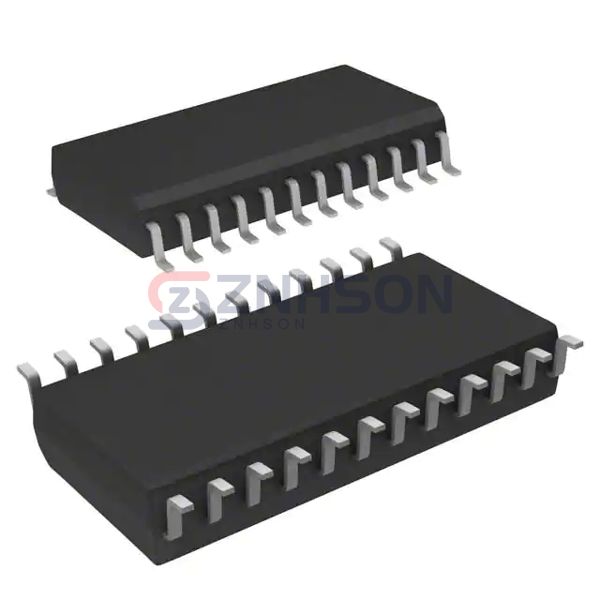

STGAP1ASTR
STMicroelectronics
STMicroelectronics
DGTL ISO 2.5KV 1CH GATE DVR 24SO
$0.00
Available to order
Reference Price (USD)
1,000+
$3.46360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STMicroelectronics STGAP1ASTR Gate Driver Isolators set the standard for secure signal transmission in high-voltage applications. Key benefits include galvanic isolation, low EMI emissions, and compatibility with industry standards. Widely used in welding equipment, HVAC systems, and data centers, these isolators ensure operational excellence. Contact our team for details and samples!
Specifications
- Product Status: Obsolete
- Technology: Magnetic Coupling
- Number of Channels: 1
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): -
- Propagation Delay tpLH / tpHL (Max): 130ns, 130ns
- Pulse Width Distortion (Max): 10ns
- Rise / Fall Time (Typ): 25ns, 25ns (Max)
- Current - Output High, Low: 2.5A, 2.5A
- Current - Peak Output: -
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 4.5V ~ 36V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 24-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 24-SO
- Approval Agency: -
Related Products
Lite-On Inc.
LTV-3150
onsemi
FOD3180V
Skyworks Solutions Inc.
SI8232BD-B-IS
Skyworks Solutions Inc.
SI8231AD-B-ISR
Rohm Semiconductor
BM60054FV-CE2
Toshiba Semiconductor and Storage
TLP155(TPR,E
STMicroelectronics

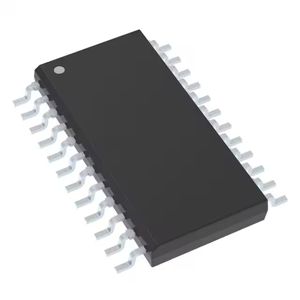

STGAP1BSTR
