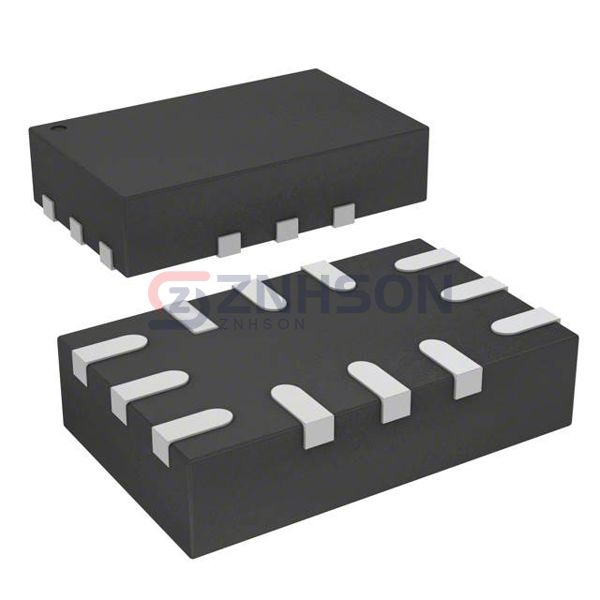

STG3856QTR
STMicroelectronics
STMicroelectronics
IC SWITCH DUAL SP3T 12QFN
$1.87
Available to order
Reference Price (USD)
3,000+
$0.54600
6,000+
$0.51870
15,000+
$0.49920
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STMicroelectronics STG3856QTR series brings you high-performance Analog Switches, Multiplexers, and Demultiplexers for all your interface needs. Perfect for data loggers, medical imaging, and communication systems, these ICs ensure reliable operation under demanding conditions. Benefit from STMicroelectronics's expertise in signal integrity and power efficiency. Reach out now to learn more and place your order with confidence.
Specifications
- Product Status: Active
- Switch Circuit: SP3T
- Multiplexer/Demultiplexer Circuit: 3:1
- Number of Circuits: 2
- On-State Resistance (Max): 1Ohm
- Channel-to-Channel Matching (ΔRon): 10mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 4.3V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 40ns, 20ns
- -3db Bandwidth: 100MHz
- Charge Injection: 55pC
- Channel Capacitance (CS(off), CD(off)): 5pF
- Current - Leakage (IS(off)) (Max): 20nA
- Crosstalk: -84dB @ 100kHz
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 12-UFQFN
- Supplier Device Package: 12-QFN (2.2x1.4)
