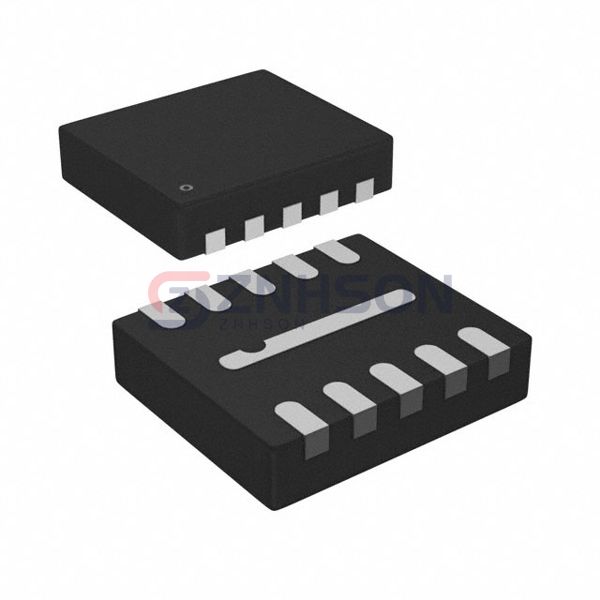

STG3684ADTR
STMicroelectronics
STMicroelectronics
IC SWITCH DUAL SPDT 10UFDFN
$0.00
Available to order
Reference Price (USD)
3,000+
$1.02600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Transform your signal management with STMicroelectronics STG3684ADTR Analog Switches, Multiplexers, and Demultiplexers, offering unparalleled precision and durability. Suitable for renewable energy systems, robotics, and more, these ICs provide high channel count and low distortion. Partner with STMicroelectronics for innovative solutions that drive success. Get started by sending us your requirements we're here to help you every step of the way.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 500mOhm
- Channel-to-Channel Matching (ΔRon): 100mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 4.3V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 55ns, 30ns
- -3db Bandwidth: 55MHz
- Charge Injection: 49pC
- Channel Capacitance (CS(off), CD(off)): 5pF
- Current - Leakage (IS(off)) (Max): 20nA
- Crosstalk: -72dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFDFN Exposed Pad
- Supplier Device Package: 10-DFN (2.3x2.0)
