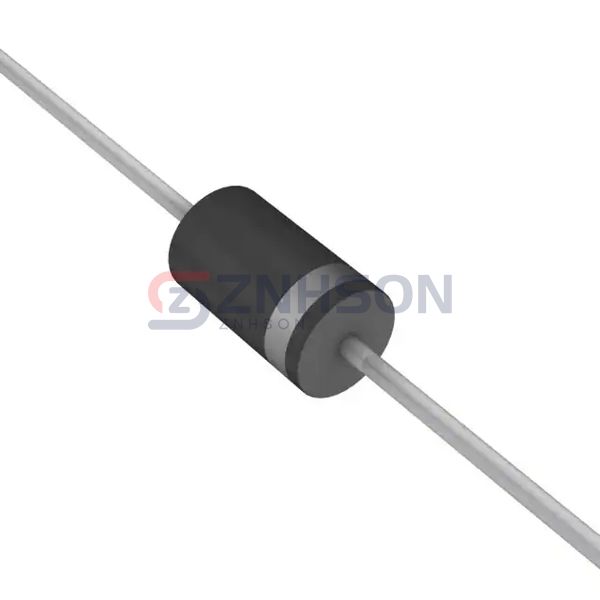

SR509H
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE SCHOTTKY 5A 90V DO-201AD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-level performance with Taiwan Semiconductor Corporation's SR509H Single Rectifier Diodes, designed for high-power applications. These diodes provide excellent rectification efficiency, making them suitable for solar panels, electric vehicles, and UPS systems. Key features include high current density, fast recovery, and superior thermal management. Taiwan Semiconductor Corporation stands by its products with rigorous testing and quality assurance. Need assistance? Contact our sales team now!
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 90 V
- Current - Average Rectified (Io): 5A (DC)
- Voltage - Forward (Vf) (Max) @ If: 850 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 100 µA @ 90 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: DO-201AD, Axial
- Supplier Device Package: DO-201AD
- Operating Temperature - Junction: -55°C ~ 150°C
Related Products
Diodes Incorporated
UG3001-T
Taiwan Semiconductor Corporation
LL5818 L0G
onsemi
MUR1510H
Microchip Technology
JANTX1N6761UR-1/TR
Microsemi Corporation
HS24230
Taiwan Semiconductor Corporation
1T2G A1G
Vishay General Semiconductor - Diodes Division
SS19-E3/61T
Vishay General Semiconductor - Diodes Division
VS-10TQ035PBF
Taiwan Semiconductor Corporation

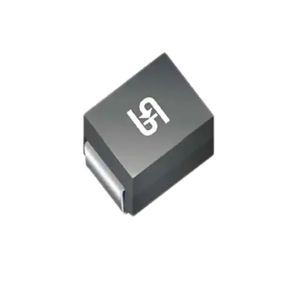

ES3FHM6G
