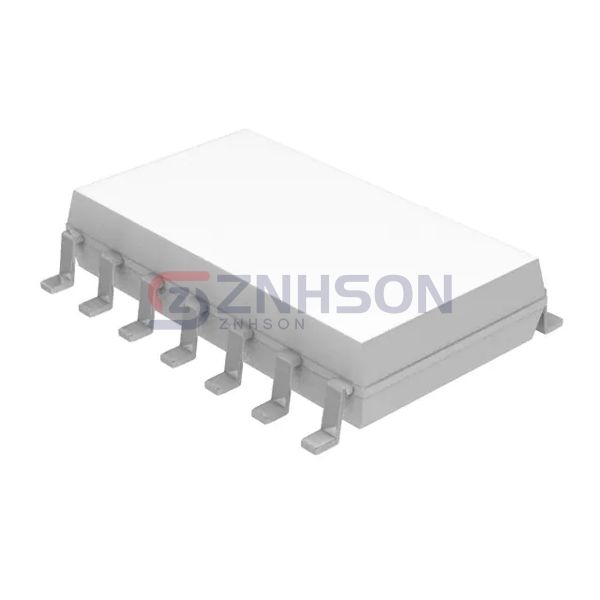

SOMC1405141AGEA
Vishay Dale
Vishay Dale
RES NTWRK 24 RES 270 OHM 14SOIC
$2.25
Available to order
Reference Price (USD)
2,000+
$1.50000
6,000+
$1.47600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Vishay Dale's SOMC1405141AGEA resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every SOMC1405141AGEA unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Dual Terminator
- Resistance (Ohms): 270
- Tolerance: ±2%
- Number of Resistors: 24
- Resistor Matching Ratio: -
- Resistor-Ratio-Drift: -
- Number of Pins: 14
- Power Per Element: 80mW
- Temperature Coefficient: ±100ppm/°C
- Operating Temperature: -55°C ~ 150°C
- Applications: -
- Mounting Type: Surface Mount
- Package / Case: 14-SOIC (0.220", 5.59mm Width)
- Supplier Device Package: -
- Size / Dimension: 0.390" L x 0.220" W (9.91mm x 5.59mm)
- Height - Seated (Max): 0.090" (2.29mm)
