SN74LVC2G132DCUT

Texas Instruments

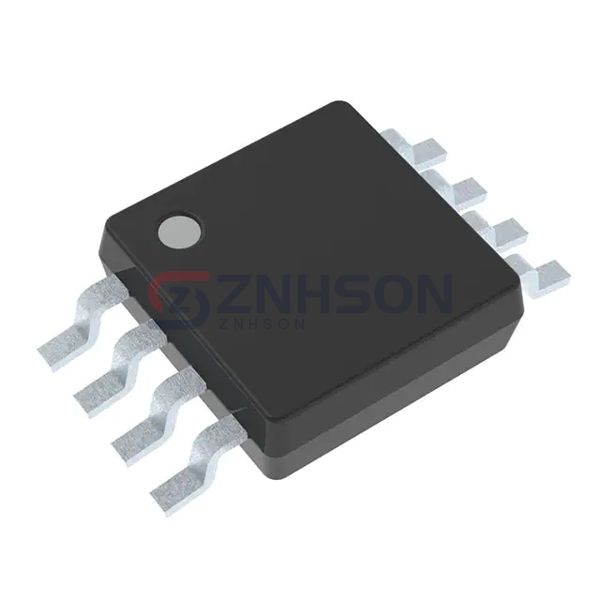

SN74LVC2G132DCUT Preview
Texas Instruments
IC GATE NAND 2CH 2-INP 8VSSOP
$1.32
Available to order
Reference Price (USD)
1+
$1.32000
500+
$1.3068
1000+
$1.2936
1500+
$1.2804
2000+
$1.2672
2500+
$1.254
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Logic Type: NAND Gate
  • Number of Circuits: 2
  • Number of Inputs: 2
  • Features: Schmitt Trigger
  • Voltage - Supply: 1.65V ~ 5.5V
  • Current - Quiescent (Max): 10 µA
  • Current - Output High, Low: 32mA, 32mA
  • Logic Level - Low: 0.39V ~ 1.87V
  • Logic Level - High: 1.16V ~ 3.33V
  • Max Propagation Delay @ V, Max CL: 5ns @ 5V, 50pF
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-VSSOP
  • Package / Case: 8-VFSOP (0.091", 2.30mm Width)
