SN74LS30D
onsemi
onsemi
IC GATE NAND 1CH 8-INP 14SOIC
$0.53
Available to order
Reference Price (USD)
1+
$1.08000
10+
$0.96200
50+
$0.91280
100+
$0.74980
500+
$0.61940
1,000+
$0.48900
2,500+
$0.45640
5,000+
$0.43358
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose onsemi's SN74LS30D Logic Gates and Inverters for precision and efficiency in every application. With advanced features like Schmitt-trigger inputs, wide operating temperatures, and RoHS compliance, these ICs excel in industrial automation, audio processing, and renewable energy systems. onsemi delivers solutions you can trust. Contact our sales team today to discuss your project needs!
Specifications
- Product Status: Obsolete
- Logic Type: NAND Gate
- Number of Circuits: 1
- Number of Inputs: 8
- Features: -
- Voltage - Supply: 4.75V ~ 5.25V
- Current - Quiescent (Max): 500 µA
- Current - Output High, Low: 400µA, 8mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 20ns @ 5V, 15pF
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SOIC
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
Related Products
National Semiconductor
95H03DC
Texas Instruments
CD74HCT04PWR
Texas Instruments
SN74ALVC10DGVR
onsemi
MC74LCX86DT
onsemi
MC14584BDG
Texas Instruments
SN74AS1004AN
Texas Instruments
74AC11032N
onsemi
MC74LCX02M
Fairchild Semiconductor

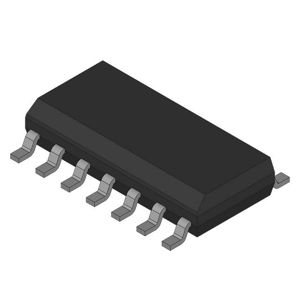

74VHC27MX
