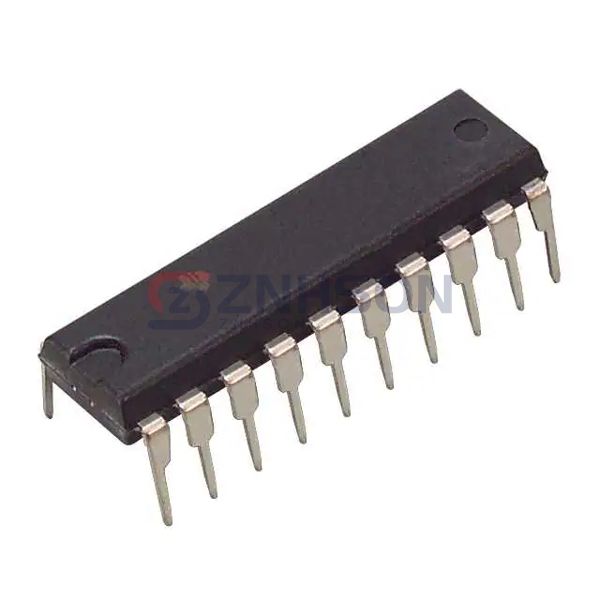

SN74LS273N
Texas Instruments
Texas Instruments
IC FF D-TYPE SNGL 8BIT 20DIP
$1.21
Available to order
Reference Price (USD)
1+
$0.86000
20+
$0.76700
40+
$0.72800
100+
$0.59800
500+
$0.49400
1,000+
$0.39000
2,500+
$0.36400
5,000+
$0.34580
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Implement cutting-edge logic designs using SN74LS273N Flip Flops from Texas Instruments. These components provide glitch-free output transitions, multiple package options, and RoHS compliance. Frequently deployed in automotive ECUs, smart meters, and wearable technology. Visit our product page or inquire directly for lead times!
Specifications
- Product Status: Active
- Function: Master Reset
- Type: D-Type
- Output Type: Non-Inverted
- Number of Elements: 1
- Number of Bits per Element: 8
- Clock Frequency: 40 MHz
- Max Propagation Delay @ V, Max CL: 27ns @ 5V, 15pF
- Trigger Type: Positive Edge
- Current - Output High, Low: 400µA, 8mA
- Voltage - Supply: 4.75V ~ 5.25V
- Current - Quiescent (Iq): 27 mA
- Input Capacitance: -
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Through Hole
- Supplier Device Package: 20-PDIP
- Package / Case: 20-DIP (0.300", 7.62mm)
