SN74LS109ADRE4
Texas Instruments
Texas Instruments
IC FF JK TYPE DUAL 1BIT 16SOIC
$0.00
Available to order
Reference Price (USD)
2,500+
$0.56840
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Implement cutting-edge logic designs using SN74LS109ADRE4 Flip Flops from Texas Instruments. These components provide glitch-free output transitions, multiple package options, and RoHS compliance. Frequently deployed in automotive ECUs, smart meters, and wearable technology. Visit our product page or inquire directly for lead times!
Specifications
- Product Status: Discontinued at Digi-Key
- Function: Set(Preset) and Reset
- Type: JK Type
- Output Type: Complementary
- Number of Elements: 2
- Number of Bits per Element: 1
- Clock Frequency: 33 MHz
- Max Propagation Delay @ V, Max CL: 25ns @ 5V, 15pF
- Trigger Type: Positive Edge
- Current - Output High, Low: 400µA, 8mA
- Voltage - Supply: 4.75V ~ 5.25V
- Current - Quiescent (Iq): 8 mA
- Input Capacitance: -
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: 16-SOIC
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
Related Products
National Semiconductor
DM54S74W/883
Microchip Technology
SY10EP52VZG
STMicroelectronics
74LVQ174MTR
onsemi
74F379SC
Microchip Technology
SY100E451JI-TR
STMicroelectronics

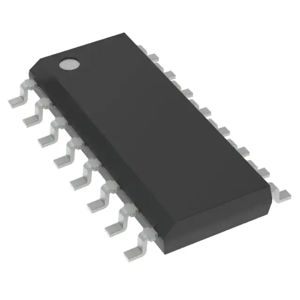

M74HC76M1R
Texas Instruments
SN74LV374APWE4
Microchip Technology
SY10EP31VZI-TR
onsemi

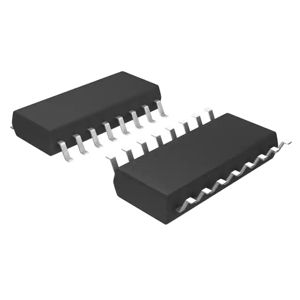

74F379SJ
