SN74HC74ANSR
Texas Instruments
Texas Instruments
IC FF D-TYPE DUAL 1BIT 14SO
$0.21
Available to order
Reference Price (USD)
4,000+
$0.15035
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's SN74HC74ANSR Logic Flip Flops set the standard for digital integration. Offering daisy-chain capability, power-down protection, and radiation-hardened variants, these ICs address complex timing challenges in defense and satellite systems. Partner with us for customized solutions - start your RFQ process now!
Specifications
- Product Status: Obsolete
- Function: Set(Preset) and Reset
- Type: D-Type
- Output Type: Complementary
- Number of Elements: 2
- Number of Bits per Element: 1
- Clock Frequency: 85 MHz
- Max Propagation Delay @ V, Max CL: 26ns @ 6V, 50pF
- Trigger Type: Positive Edge
- Current - Output High, Low: 5.2mA, 5.2mA
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Iq): 4 µA
- Input Capacitance: 3 pF
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SO
- Package / Case: 14-SOIC (0.209", 5.30mm Width)
Related Products
onsemi
NLV14076BDR2G
Texas Instruments
SN74AS574DW
NXP Semiconductors
74LVC74APW,118
Fairchild Semiconductor
DM74ALS174MX
Texas Instruments

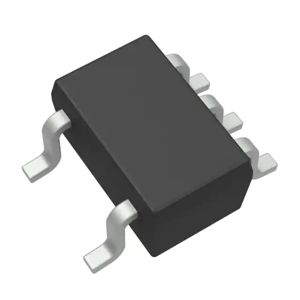

SN74AUC1G80DCKR
onsemi

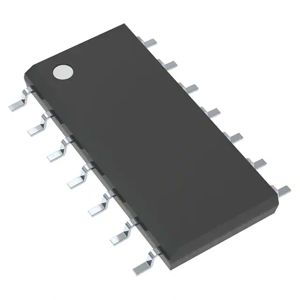

MC74AC74DG
