SN74HC7002DT
Texas Instruments
Texas Instruments
IC GATE NOR 4CH 2IN 14SOIC
$3.59
Available to order
Reference Price (USD)
1+
$3.59000
500+
$3.5541
1000+
$3.5182
1500+
$3.4823
2000+
$3.4464
2500+
$3.4105
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your designs with SN74HC7002DT Logic Gates and Inverters from Texas Instruments, a leader in semiconductor solutions. Featuring low propagation delay, high fan-out, and eco-friendly materials, these ICs are ideal for aerospace, medical equipment, and smart home applications. Texas Instruments guarantees quality and consistency across all production batches. Don't miss out get in touch for specifications and lead time details!
Specifications
- Product Status: Active
- Logic Type: NOR Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: Schmitt Trigger
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Max): 2 µA
- Current - Output High, Low: 5.2mA, 5.2mA
- Logic Level - Low: 0.3V ~ 1.2V
- Logic Level - High: 1.5V ~ 4.2V
- Max Propagation Delay @ V, Max CL: 22ns @ 6V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SOIC
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
Related Products
Nexperia USA Inc.
74AHCT1G32GW-Q100,
Nexperia USA Inc.

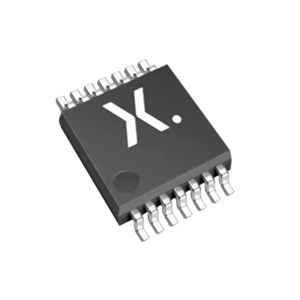

74HC32PW,118
Texas Instruments

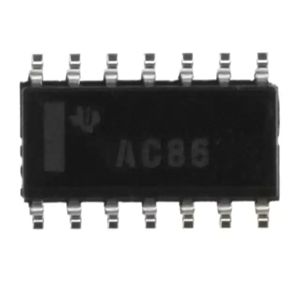

SN74AC14DBR
onsemi

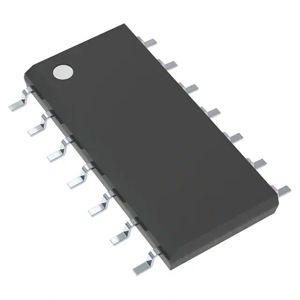

74VHC00MX
Texas Instruments
SN74HCS4075QPWRQ1
Rochester Electronics, LLC

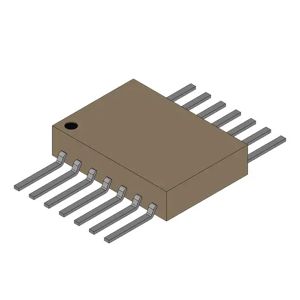

54L04/BDA
onsemi

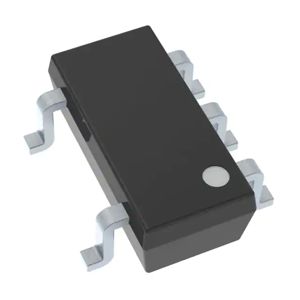

NL17SZU04DBVT1G
Nexperia USA Inc.
74HC27BQ,115
onsemi

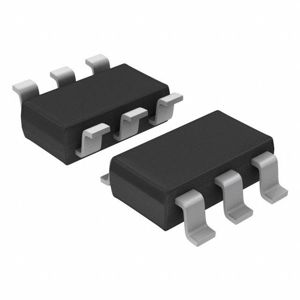

NL27WZ06DTT1G
