SN74HC7002D
Texas Instruments
Texas Instruments
IC GATE NOR 4CH 2IN 14SOIC
$3.59
Available to order
Reference Price (USD)
1+
$2.75000
10+
$2.47000
50+
$2.33000
100+
$1.98520
500+
$1.63100
1,000+
$1.35140
2,500+
$1.25820
5,000+
$1.21160
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality SN74HC7002D Logic Gates and Inverters from Texas Instruments, designed for reliable performance in various electronic applications. These ICs feature robust construction, low power consumption, and high-speed operation, making them ideal for digital circuits, computing systems, and automation controls. Whether you're designing consumer electronics or industrial machinery, Texas Instruments's Logic Gates and Inverters ensure precision and efficiency. Interested in bulk orders or custom solutions? Contact us today for a quote!
Specifications
- Product Status: Active
- Logic Type: NOR Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: Schmitt Trigger
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Max): 2 µA
- Current - Output High, Low: 5.2mA, 5.2mA
- Logic Level - Low: 0.3V ~ 1.2V
- Logic Level - High: 1.5V ~ 4.2V
- Max Propagation Delay @ V, Max CL: 22ns @ 6V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SOIC
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
Related Products
Texas Instruments
SN74LVC2G06QDCKRQ1
Texas Instruments

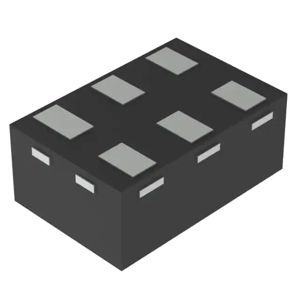

SN74AUC1G04DRYR
Diodes Incorporated

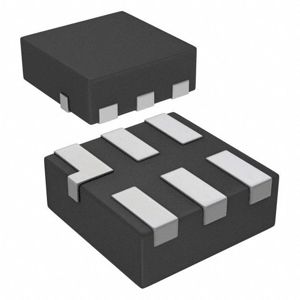

74LVC1G86FW4-7
Fairchild Semiconductor

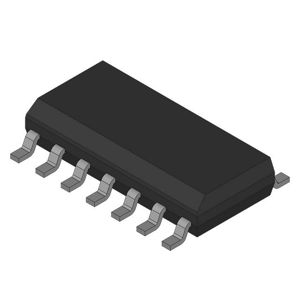

74F20SJX
Nexperia USA Inc.

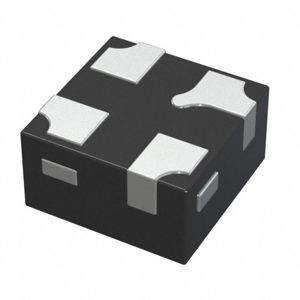

74AUP1G14GX4-Q100Z
Texas Instruments
SN74ALS38BNSR
Texas Instruments

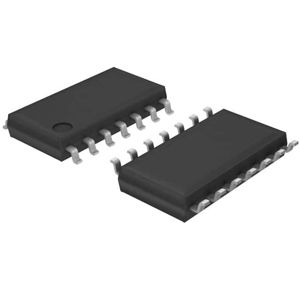

SN74HC21NSR
Fairchild Semiconductor

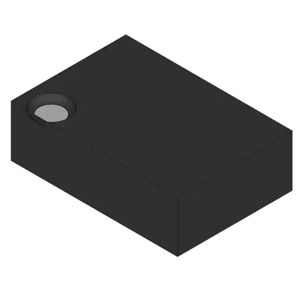

NC7SP05L6X
NTE Electronics, Inc

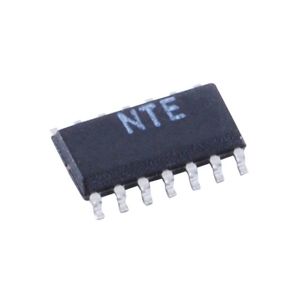

NTE74HCT14T
