SN74HC20PW
Texas Instruments
Texas Instruments
IC GATE NAND 2CH 4-INP 14TSSOP
$1.16
Available to order
Reference Price (USD)
1+
$1.16000
500+
$1.1484
1000+
$1.1368
1500+
$1.1252
2000+
$1.1136
2500+
$1.102
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your designs with SN74HC20PW Logic Gates and Inverters from Texas Instruments, a leader in semiconductor solutions. Featuring low propagation delay, high fan-out, and eco-friendly materials, these ICs are ideal for aerospace, medical equipment, and smart home applications. Texas Instruments guarantees quality and consistency across all production batches. Don't miss out get in touch for specifications and lead time details!
Specifications
- Product Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 2
- Number of Inputs: 4
- Features: -
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Max): 2 µA
- Current - Output High, Low: 5.2mA, 5.2mA
- Logic Level - Low: 0.5V ~ 1.8V
- Logic Level - High: 1.5V ~ 4.2V
- Max Propagation Delay @ V, Max CL: 19ns @ 6V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-TSSOP
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
Related Products
Rochester Electronics, LLC
54L55W/B
onsemi

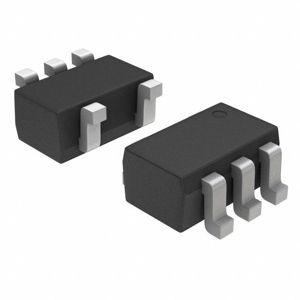

NL17SZ86DFT2G
Texas Instruments
74AC11000D
Texas Instruments

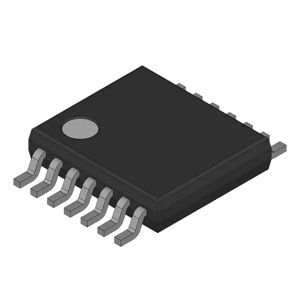

SN74LVC86PWLE
Fairchild Semiconductor

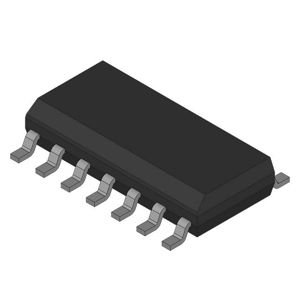

74LVX14SJX
Texas Instruments
CD4071BMT
Texas Instruments
SN74AC04DR
onsemi

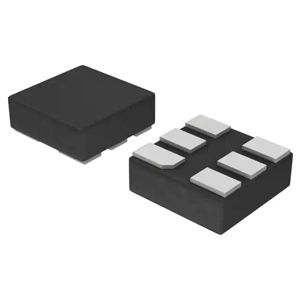

NLX2G14AMX1TCG
