SN74F30DR
Texas Instruments
Texas Instruments
IC GATE NAND 1CH 8-INP 14SOIC
$0.22
Available to order
Reference Price (USD)
2,500+
$0.21080
5,000+
$0.19720
12,500+
$0.18360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-gen performance with Texas Instruments's SN74F30DR Logic Gates and Inverters, tailored for complex digital systems. Highlights include bidirectional operation, fail-safe outputs, and Pb-free construction, serving data centers, AI hardware, and sensor networks. Texas Instruments prioritizes customer satisfaction with rigorous testing protocols. For datasheets or partnership opportunities, reach out now!
Specifications
- Product Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 1
- Number of Inputs: 8
- Features: -
- Voltage - Supply: 4.5V ~ 5.5V
- Current - Quiescent (Max): 1.5 mA
- Current - Output High, Low: 1mA, 20mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 5ns @ 5V, 50pF
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SOIC
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
Related Products
NXP USA Inc.
74AUP1G06GF125
Fairchild Semiconductor
74ALVC08M
National Semiconductor
54S20DM
Texas Instruments
CD74HCU04QPWRQ1
Fairchild Semiconductor

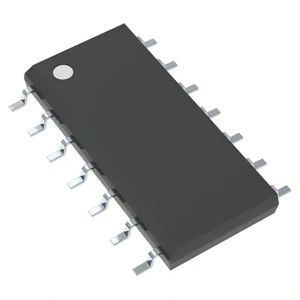

DM74AS10MX
Texas Instruments

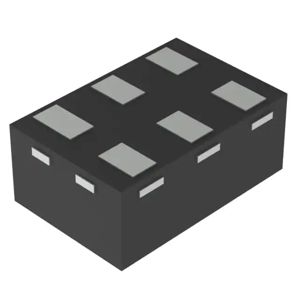

SN74LVC1G00DRY2
Nexperia USA Inc.
HEF4011BT,652
Texas Instruments
SN74LV132ADR
National Semiconductor

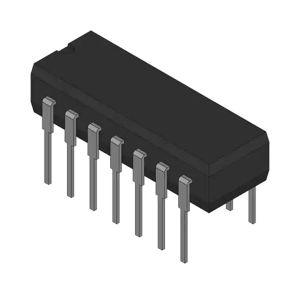

933PC
