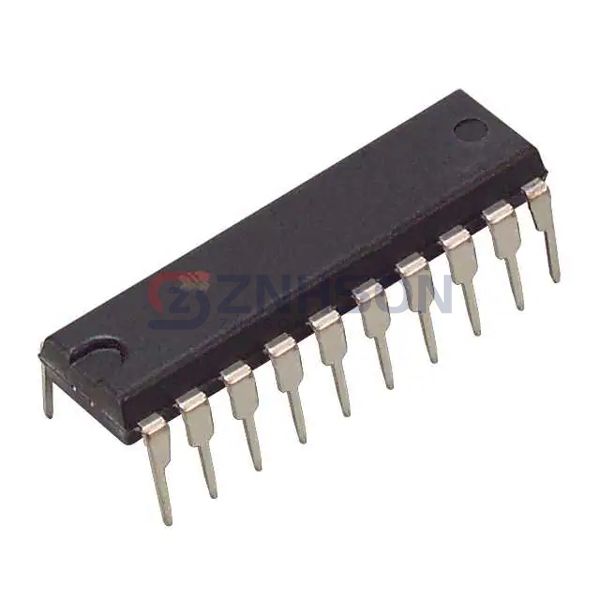

SN74AC534N
Texas Instruments
Texas Instruments
IC FF D-TYPE SNGL 8BIT 20DIP
$0.37
Available to order
Reference Price (USD)
1+
$0.84000
20+
$0.74250
40+
$0.69750
100+
$0.56930
500+
$0.45000
1,000+
$0.36000
2,500+
$0.32625
5,000+
$0.30375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your digital designs with SN74AC534N Logic Flip Flops by Texas Instruments. Featuring fast switching speeds, robust noise immunity, and compact packaging, these flip flops are perfect for use in registers, counters, and memory units. Suitable for industrial, automotive, and consumer electronics. Request a quote now to learn more about our solutions!
Specifications
- Product Status: Active
- Function: Standard
- Type: D-Type
- Output Type: Tri-State, Inverted
- Number of Elements: 1
- Number of Bits per Element: 8
- Clock Frequency: 150 MHz
- Max Propagation Delay @ V, Max CL: 10.5ns @ 5V, 50pF
- Trigger Type: Positive Edge
- Current - Output High, Low: 24mA, 24mA
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Iq): 4 µA
- Input Capacitance: 4.5 pF
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Supplier Device Package: 20-PDIP
- Package / Case: 20-DIP (0.300", 7.62mm)
