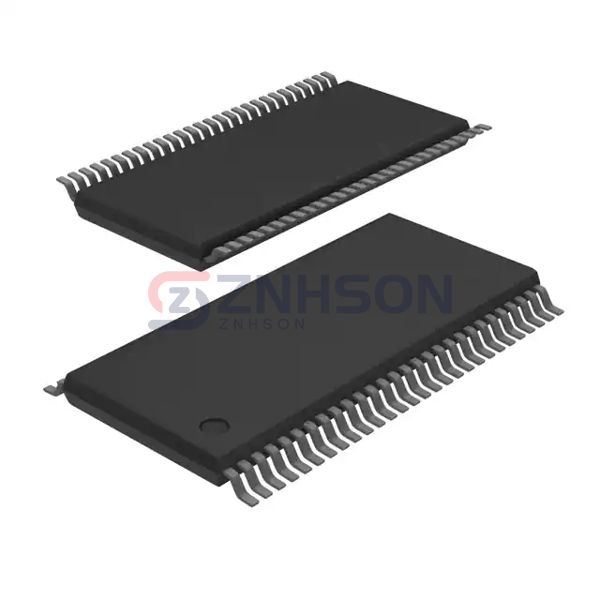

SN74ABTH16823DLG4
Texas Instruments
Texas Instruments
IC FF D-TYPE SNGL 9BIT 56SSOP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SN74ABTH16823DLG4 series by Texas Instruments delivers advanced Logic Flip Flop solutions for modern electronics. With features like master-slave configuration, preset/clear options, and Pb-free construction, these devices meet rigorous industry standards. Perfect for robotics, instrumentation, and power management circuits. Email us for technical documentation!
Specifications
- Product Status: Obsolete
- Function: Master Reset
- Type: D-Type
- Output Type: Tri-State, Non-Inverted
- Number of Elements: 1
- Number of Bits per Element: 9
- Clock Frequency: 150 MHz
- Max Propagation Delay @ V, Max CL: 5.5ns @ 5V, 50pF
- Trigger Type: Positive Edge
- Current - Output High, Low: 32mA, 64mA
- Voltage - Supply: 4.5V ~ 5.5V
- Current - Quiescent (Iq): 500 µA
- Input Capacitance: 4 pF
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: 56-SSOP
- Package / Case: 56-BSSOP (0.295", 7.50mm Width)
Related Products
onsemi
MC74HC175ADTR2
Texas Instruments
SN74S74DRE4
Texas Instruments

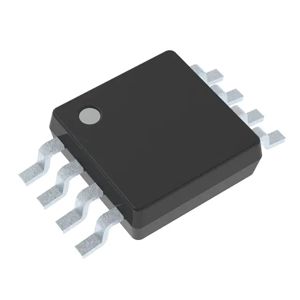

SN74AUC1G74DCURE4
NXP USA Inc.

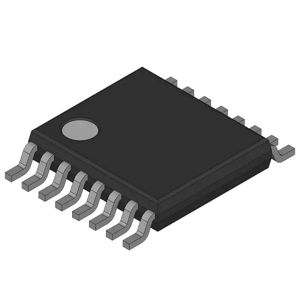

74HC175PW-Q100118
Texas Instruments
SN74LVC74ADG4
Quality Semiconductor

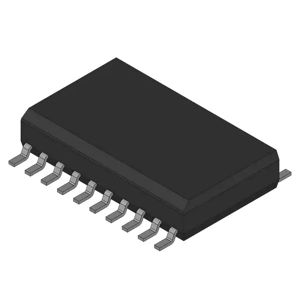

QS74FCT273TSO
Nexperia USA Inc.

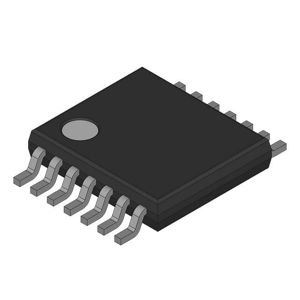

HEF4013BTT-Q100118
NXP USA Inc.

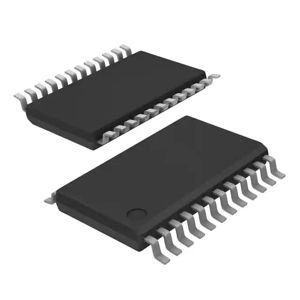

74ABT821PW,112
