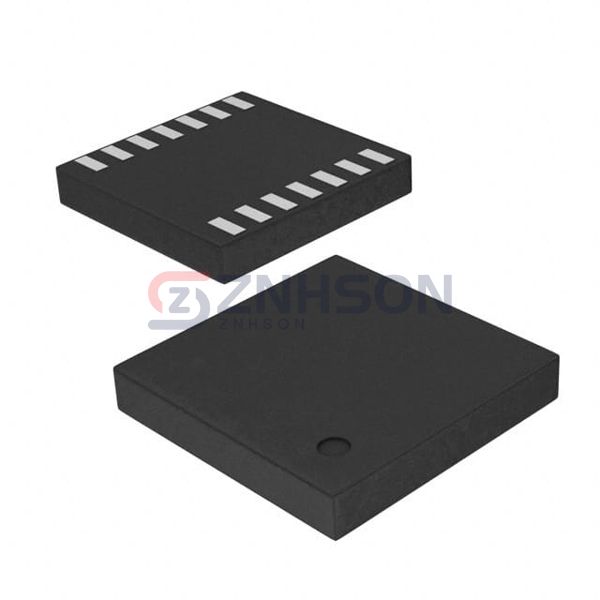

SI8236AA-C-IMR
Skyworks Solutions Inc.
Skyworks Solutions Inc.
DGTL ISO 1KV 2CH GATE DRVR 14LGA
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your systems with Skyworks Solutions Inc. SI8236AA-C-IMR Gate Driver Isolators, engineered for superior isolation and efficiency. Key features include low propagation delay, high common-mode transient immunity, and wide temperature range compatibility. Perfect for renewable energy systems, automation controls, and medical equipment, these isolators deliver unmatched performance. Ready to optimize your design? Request a quote now!
Specifications
- Product Status: Obsolete
- Technology: Capacitive Coupling
- Number of Channels: 2
- Voltage - Isolation: 1000Vrms
- Common Mode Transient Immunity (Min): 20kV/µs
- Propagation Delay tpLH / tpHL (Max): 60ns, 60ns
- Pulse Width Distortion (Max): 5.6ns
- Rise / Fall Time (Typ): 12ns, 12ns (Max)
- Current - Output High, Low: 2A, 4A
- Current - Peak Output: 4A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 6.5V ~ 24V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 14-VFLGA
- Supplier Device Package: 14-LGA (5x5)
- Approval Agency: CQC, CSA, UR, VDE
