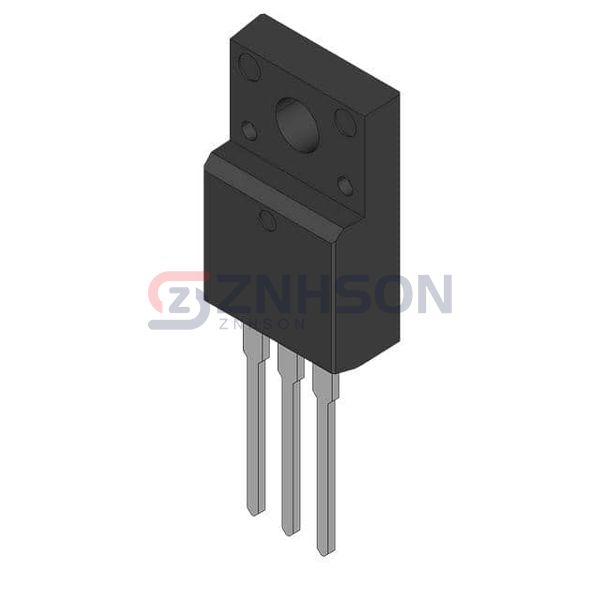

SGS5N150UFTU
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 10A, 1500V, N-CHANNEL
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SGS5N150UFTU Single IGBT from Fairchild Semiconductor delivers unmatched performance in power conversion and control. Ideal for UPS systems, induction heating, and industrial automation, this transistor combines high efficiency with rugged reliability. Features such as short-circuit protection and low EMI make it a standout choice. Fairchild Semiconductor's commitment to innovation ensures SGS5N150UFTU meets the demands of modern electronics. Get in touch for bulk orders and customization options!
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1500 V
- Current - Collector (Ic) (Max): 10 A
- Current - Collector Pulsed (Icm): 20 A
- Vce(on) (Max) @ Vge, Ic: 5.5V @ 10V, 5A
- Power - Max: 50 W
- Switching Energy: 190µJ (on), 100µJ (off)
- Input Type: Standard
- Gate Charge: 30 nC
- Td (on/off) @ 25°C: 10ns/30ns
- Test Condition: 600V, 5A, 10Ohm, 10V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220F-3
Related Products
IXYS
IXBP5N160G
STMicroelectronics
STGW45NC60VD
STMicroelectronics
STGD7NB120ST4
IXYS
IXGP7N60C
Infineon Technologies
IKA03N120H2XKSA1
Infineon Technologies
IKW40TI20FKSA1
Infineon Technologies

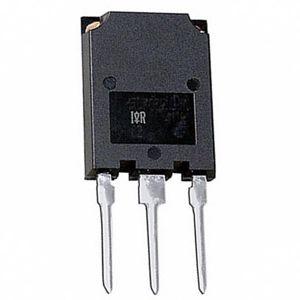

IRG4PSH71U
