SGS23N60UFDTU
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 23A I(C), 600V V(BR)CES, N
$0.00
Available to order
Reference Price (USD)
1,000+
$1.23760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize energy efficiency with SGS23N60UFDTU Single IGBTs by Fairchild Semiconductor, a trusted name in discrete semiconductors. Suitable for solar inverters, motor controllers, and more, these transistors feature low conduction loss and high switching frequency. Their robust design ensures long-term performance even in harsh environments. Choose SGS23N60UFDTU for your next project and experience the Fairchild Semiconductor difference. Submit your inquiry today for expert assistance!
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 23 A
- Current - Collector Pulsed (Icm): 92 A
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 12A
- Power - Max: 73 W
- Switching Energy: 115µJ (on), 135µJ (off)
- Input Type: Standard
- Gate Charge: 49 nC
- Td (on/off) @ 25°C: 17ns/60ns
- Test Condition: 300V, 12A, 23Ohm, 15V
- Reverse Recovery Time (trr): 60 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole

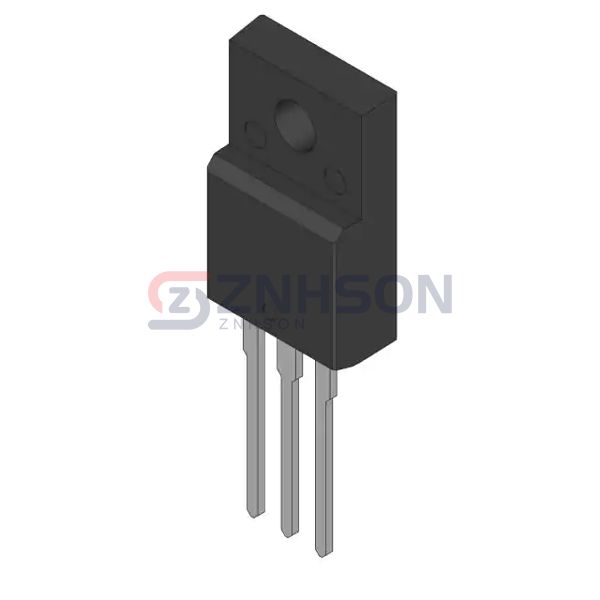

- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220F
