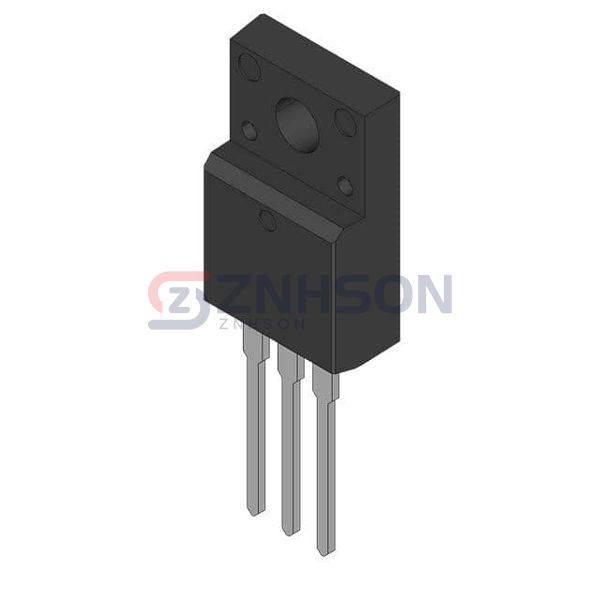

SGS13N60UFDTU
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 13A, 600V, N-CHANNEL
$0.51
Available to order
Reference Price (USD)
1+
$0.51000
500+
$0.5049
1000+
$0.4998
1500+
$0.4947
2000+
$0.4896
2500+
$0.4845
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose SGS13N60UFDTU Single IGBTs by Fairchild Semiconductor for superior power handling in demanding environments. From railway systems to industrial drives, these transistors excel with features like avalanche ruggedness and integrated diodes. Their modular design simplifies installation and maintenance. Fairchild Semiconductor's reputation for quality makes SGS13N60UFDTU a smart investment. Email us now for datasheets and volume discounts!
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 13 A
- Current - Collector Pulsed (Icm): 52 A
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 6.5A
- Power - Max: 45 W
- Switching Energy: 85µJ (on), 95µJ (off)
- Input Type: Standard
- Gate Charge: 25 nC
- Td (on/off) @ 25°C: 20ns/70ns
- Test Condition: 300V, 6.5A, 50Ohm, 15V
- Reverse Recovery Time (trr): 55 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220F-3
