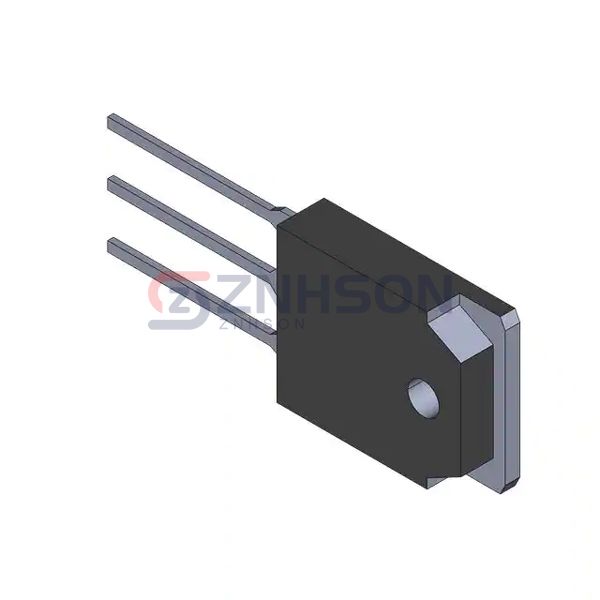

SGF80N60UFTU
Fairchild Semiconductor
Fairchild Semiconductor
IGBT, 80A, 600V, N-CHANNEL
$4.75
Available to order
Reference Price (USD)
360+
$4.88400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SGF80N60UFTU Single IGBT from Fairchild Semiconductor redefines reliability in power electronics. Tailored for renewable energy, telecom, and defense applications, it offers ultra-low switching losses and high-frequency operation. With anti-parallel diodes and short-circuit ratings, it s built for safety and performance. Fairchild Semiconductor stands behind every SGF80N60UFTU with unmatched customer service. Start your order process by contacting our sales team today!
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 220 A
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 40A
- Power - Max: 110 W
- Switching Energy: 570µJ (on), 590µJ (off)
- Input Type: Standard
- Gate Charge: 175 nC
- Td (on/off) @ 25°C: 23ns/90ns
- Test Condition: 300V, 40A, 5Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-3P-3 Full Pack
- Supplier Device Package: TO-3PF
