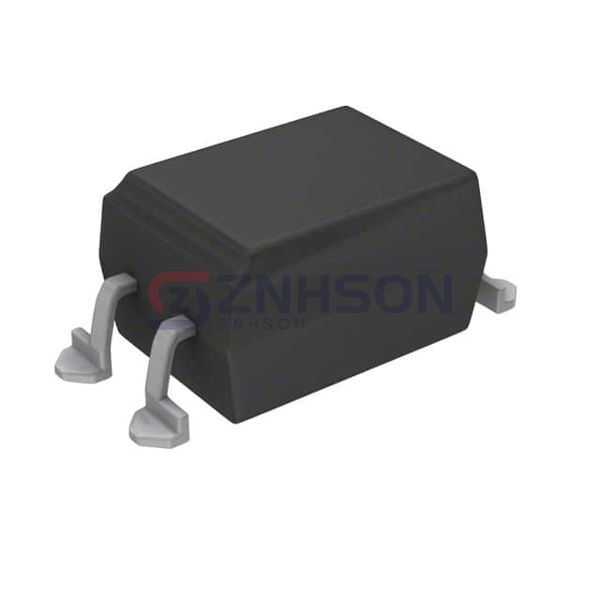

SFH6156-1X001
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISOLATOR 5.3KV TRANS 4SMD
$0.28
Available to order
Reference Price (USD)
4,000+
$0.27160
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Vishay Semiconductor Opto Division presents the SFH6156-1X001 Optoisolators - Transistor, Photovoltaic Output, designed for precision and reliability in harsh environments. These isolators are commonly used in robotics, HVAC systems, and power electronics, providing excellent noise immunity and thermal stability. Trusted by engineers globally, Vishay Semiconductor Opto Division ensures top-tier quality and performance. Interested? Send us your inquiry and discover the perfect fit for your application!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5300Vrms
- Current Transfer Ratio (Min): 40% @ 10mA
- Current Transfer Ratio (Max): 80% @ 10mA
- Turn On / Turn Off Time (Typ): 3µs, 2.3µs
- Rise / Fall Time (Typ): 2µs, 2µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, Gull Wing
- Supplier Device Package: 4-SMD
