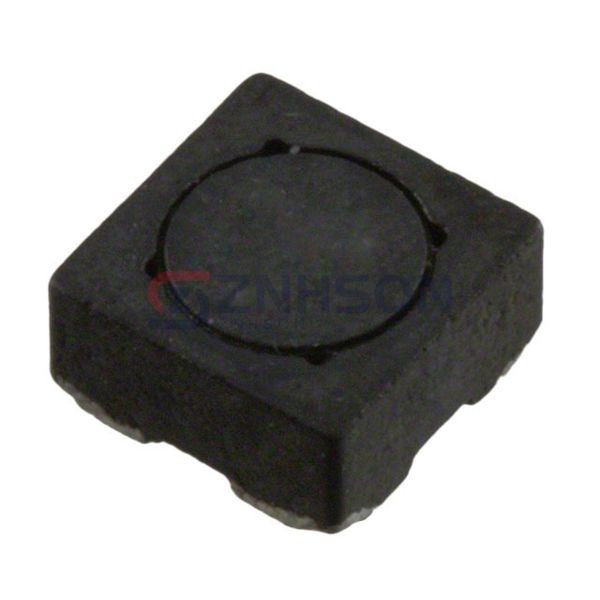

SDQ25-681-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 677.4UH SMD
$2.39
Available to order
Reference Price (USD)
1+
$2.39032
500+
$2.3664168
1000+
$2.3425136
1500+
$2.3186104
2000+
$2.2947072
2500+
$2.270804
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with SDQ25-681-R Eaton - Electronics Division Inductors, Coils, and Chokes, perfect for Arrays and Signal Transformers. These components provide excellent impedance matching and noise filtering, essential for high-speed digital and analog circuits. For tailored solutions and unbeatable service, contact us now and let s discuss your requirements!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 677.4 µH
- Inductance - Connected In Series: 2.7 mH
- Tolerance: ±20%
- Current Rating - Parallel: 197 mA
- Current Rating - Series: 98 mA
- Current Saturation - Parallel: 155 mA
- Current Saturation - Series: 77 mA
- DC Resistance (DCR) - Parallel: 6.45Ohm
- DC Resistance (DCR) - Series: 25.78Ohm
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.205" L x 0.205" W (5.20mm x 5.20mm)
- Height: 0.098" (2.50mm)
