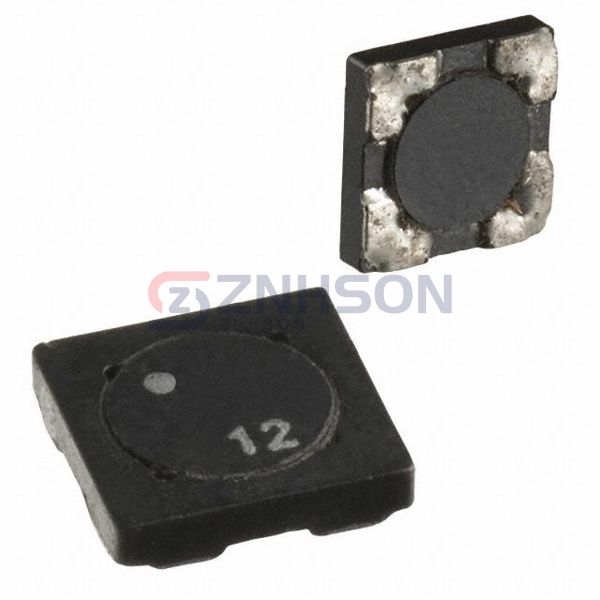

SDQ12-820-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 82.81UH SMD
$2.25
Available to order
Reference Price (USD)
1+
$2.25330
500+
$2.230767
1000+
$2.208234
1500+
$2.185701
2000+
$2.163168
2500+
$2.140635
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve peak performance with SDQ12-820-R Eaton - Electronics Division Inductors, Coils, and Chokes, tailored for Arrays and Signal Transformers. These components feature advanced materials and precise engineering, ensuring reliability in automotive, industrial, and consumer applications. For more details or to discuss your specific needs, reach out to our team now we re here to help!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 82.81 µH
- Inductance - Connected In Series: 331.2 µH
- Tolerance: ±20%
- Current Rating - Parallel: 309 mA
- Current Rating - Series: 154 mA
- Current Saturation - Parallel: 334 mA
- Current Saturation - Series: 167 mA
- DC Resistance (DCR) - Parallel: 2.62Ohm
- DC Resistance (DCR) - Series: 10.49Ohm
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.205" L x 0.205" W (5.20mm x 5.20mm)
- Height: 0.047" (1.19mm)
