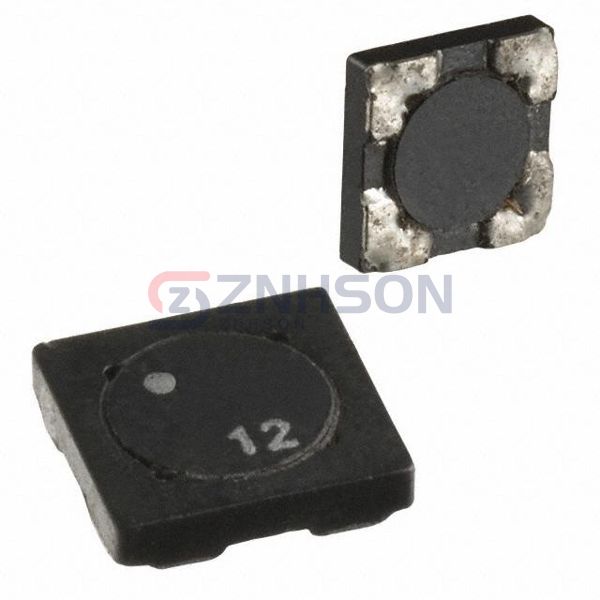

SDQ12-220-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 22.09UH SMD
$2.56
Available to order
Reference Price (USD)
1+
$2.55780
500+
$2.532222
1000+
$2.506644
1500+
$2.481066
2000+
$2.455488
2500+
$2.42991
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality SDQ12-220-R Eaton - Electronics Division Inductors, Coils, and Chokes designed for optimal performance in various electronic applications. Our Arrays and Signal Transformers offer exceptional efficiency, durability, and precision, making them ideal for telecommunications, automotive, and industrial uses. With advanced features like low resistance and high-frequency stability, these components ensure reliable operation in demanding environments. Interested in learning more? Contact us today for a customized quote and technical support!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 22.09 µH
- Inductance - Connected In Series: 88.36 µH
- Tolerance: ±20%
- Current Rating - Parallel: 548 mA
- Current Rating - Series: 274 mA
- Current Saturation - Parallel: 647 mA
- Current Saturation - Series: 323 mA
- DC Resistance (DCR) - Parallel: 833.2mOhm
- DC Resistance (DCR) - Series: 3.33Ohm
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.205" L x 0.205" W (5.20mm x 5.20mm)
- Height: 0.047" (1.19mm)
