SCH2825-TL-E

onsemi

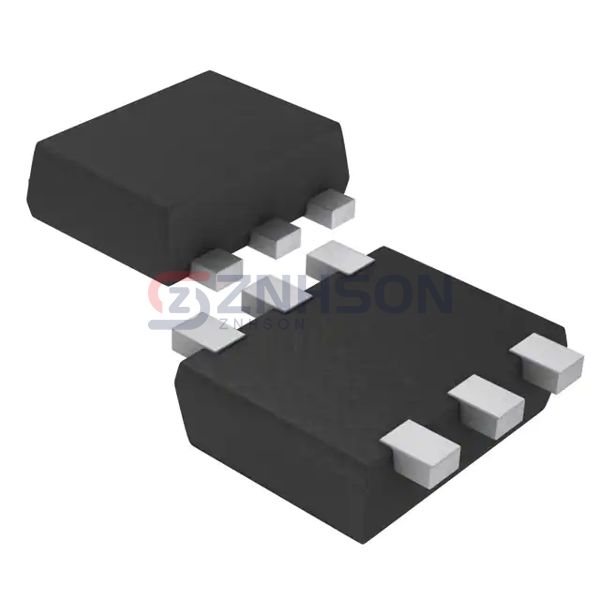

SCH2825-TL-E Preview
onsemi
MOSFET N-CH 30V 1.6A 6SCH
$0.12
Available to order
Reference Price (USD)
1+
$0.12000
500+
$0.1188
1000+
$0.1176
1500+
$0.1164
2000+
$0.1152
2500+
$0.114
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Obsolete
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30 V
  • Current - Continuous Drain (Id) @ 25°C: 1.6A (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 4V, 10V
  • Rds On (Max) @ Id, Vgs: 180mOhm @ 800mA, 10V
  • Vgs(th) (Max) @ Id: -
  • Gate Charge (Qg) (Max) @ Vgs: 2 nC @ 10 V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 88 pF @ 10 V
  • FET Feature: Schottky Diode (Isolated)
  • Power Dissipation (Max): 600mW (Ta)
  • Operating Temperature: -55°C ~ 125°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 6-SCH
  • Package / Case: 6-SMD, Flat Leads
