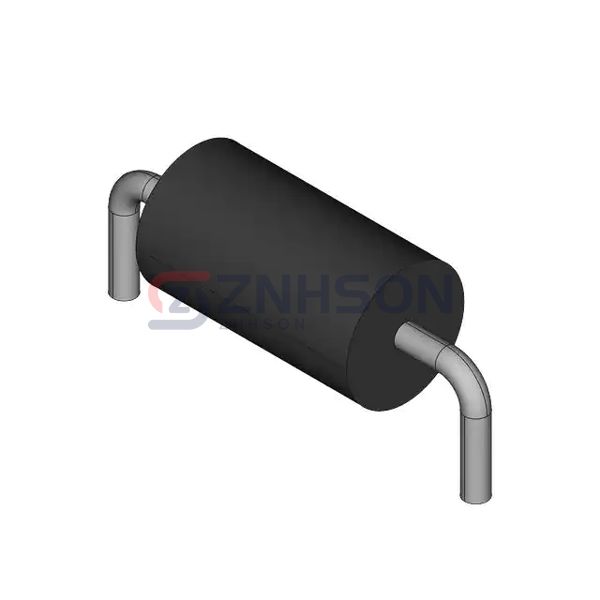

SB560
Fairchild Semiconductor
Fairchild Semiconductor
RECTIFIER DIODE, SCHOTTKY, 5A, 6
$0.00
Available to order
Reference Price (USD)
1,250+
$0.22125
2,500+
$0.20270
6,250+
$0.19035
12,500+
$0.18416
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your electronic designs with SB560 Single Rectifier Diodes by Fairchild Semiconductor, offering unparalleled efficiency and durability. Ideal for power supplies, inverters, and DC-DC converters, these diodes feature ultra-low leakage and high junction temperature tolerance. Their robust design ensures stable performance in extreme conditions. Whether for prototyping or mass production, Fairchild Semiconductor has you covered. Request a quote or technical support today!
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io): 5A
- Voltage - Forward (Vf) (Max) @ If: 670 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 60 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: DO-201AA, DO-27, Axial
- Supplier Device Package: DO-201
- Operating Temperature - Junction: -50°C ~ 150°C
