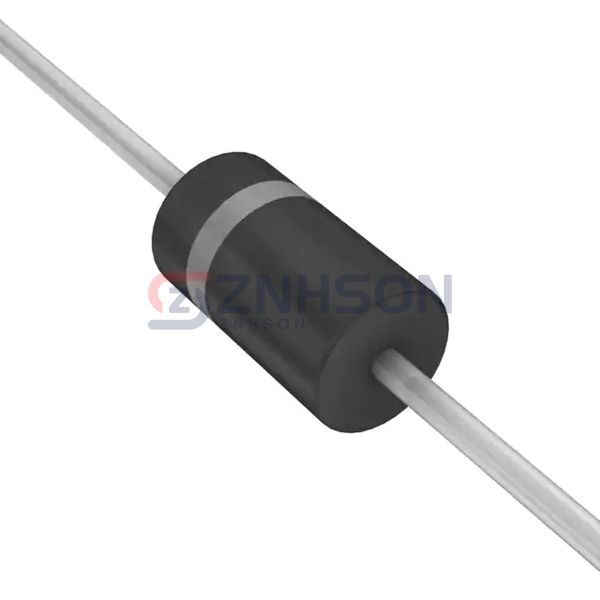

SB520
onsemi
onsemi
DIODE SCHOTTKY 20V 5A DO201AD
$0.58
Available to order
Reference Price (USD)
1,250+
$0.18616
2,500+
$0.17056
6,250+
$0.16016
12,500+
$0.15496
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize efficiency with onsemi's SB520 Single Rectifier Diodes, the go-to choice for professionals seeking reliable power rectification. Suitable for high-frequency applications, these diodes provide fast recovery times and low conduction losses. Commonly used in switch-mode power supplies, welding equipment, and battery chargers, they are built to withstand harsh environments. Features include high surge current ratings and robust packaging. Don't miss out request a sample or quote today!
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 5A
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 20 V
- Capacitance @ Vr, F: 500pF @ 4V, 1MHz
- Mounting Type: Through Hole
- Package / Case: DO-201AD, Axial
- Supplier Device Package: DO-201AD
- Operating Temperature - Junction: -55°C ~ 150°C
