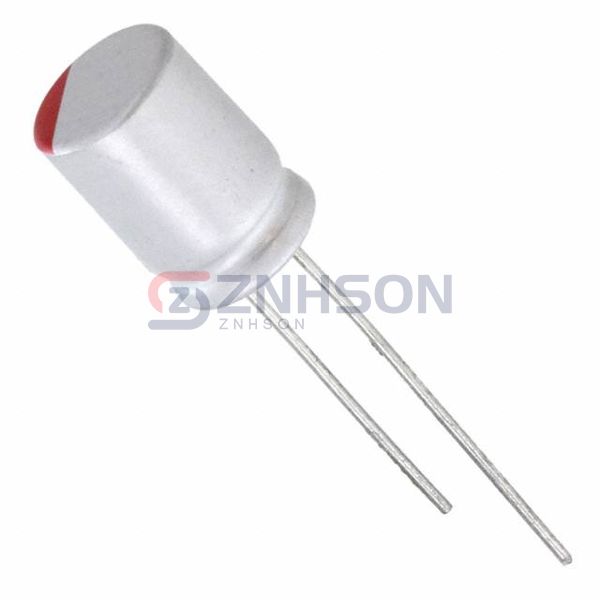

RNS1E220MDN1PX
Nichicon
Nichicon
CAP ALUM POLY 22UF 20% 25V T/H
$0.52
Available to order
Reference Price (USD)
1+
$0.52457
500+
$0.5193243
1000+
$0.5140786
1500+
$0.5088329
2000+
$0.5035872
2500+
$0.4983415
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Nichicon's RNS1E220MDN1PX Aluminum - Polymer Capacitors are the go-to choice for high-end electronic applications. Featuring ultra-low ESR, high temperature endurance, and superior energy efficiency, these capacitors excel in data centers, telecommunications, and power electronics. Their cutting-edge technology ensures peak performance under demanding conditions. Interested in integrating these capacitors into your designs? Reach out to us today for expert advice and competitive pricing!
Specifications
- Product Status: Active
- Type: Polymer
- Capacitance: 22 µF
- Tolerance: ±20%
- Voltage - Rated: 25 V
- ESR (Equivalent Series Resistance): 28mOhm
- Lifetime @ Temp.: 2000 Hrs @ 105°C
- Operating Temperature: -55°C ~ 105°C
- Ratings: -
- Applications: General Purpose
- Features: -
- Ripple Current @ Low Frequency: 340 mA @ 120 Hz
- Ripple Current @ High Frequency: 3.4 A @ 100 kHz
- Impedance: -
- Lead Spacing: 0.138" (3.50mm)
- Size / Dimension: 0.315" Dia (8.00mm)
- Height - Seated (Max): 0.512" (13.00mm)
- Surface Mount Land Size: -
- Mounting Type: Through Hole
- Package / Case: Radial, Can
