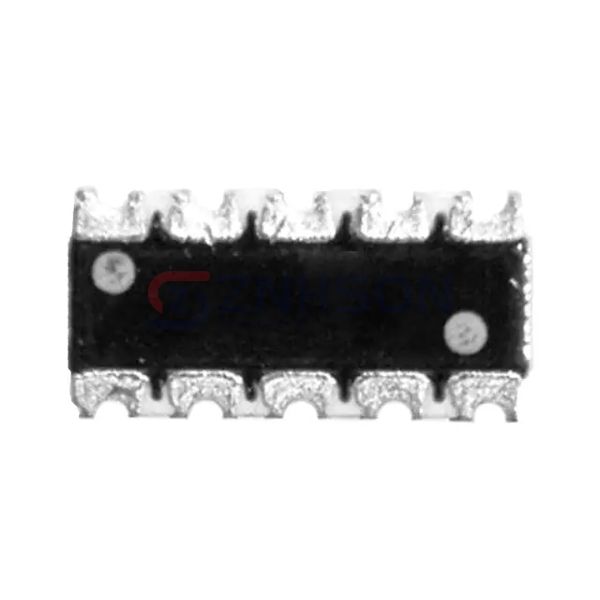

RACF324DJT560R
Stackpole Electronics Inc
Stackpole Electronics Inc
RES ARRAY 4 RES 560 OHM 2010
$0.00
Available to order
Reference Price (USD)
4,000+
$0.06143
8,000+
$0.05558
12,000+
$0.05304
28,000+
$0.05082
100,000+
$0.04875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet RACF324DJT560R Stackpole Electronics Inc's breakthrough in high-density resistor array technology. Each network integrates 8-32 resistors with laser-trimmed accuracy ( 0.5% standard), reducing board space by up to 70% versus discrete options. Particularly effective in: LED driver current regulation, PLC I/O modules, and test equipment calibration circuits. All products undergo 100% automated testing with full traceability. Click 'Request Quote' for volume discounts or MIL-SPEC versions.
Specifications
- Product Status: Obsolete
- Circuit Type: Isolated
- Resistance (Ohms): 560
- Tolerance: ±5%
- Number of Resistors: 4
- Resistor Matching Ratio: -
- Resistor-Ratio-Drift: -
- Number of Pins: 8
- Power Per Element: 125mW
- Temperature Coefficient: ±200ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Applications: -
- Mounting Type: Surface Mount
- Package / Case: 2010 (5025 Metric), Concave, Long Side Terminals
- Supplier Device Package: -
- Size / Dimension: 0.200" L x 0.118" W (5.08mm x 3.00mm)
- Height - Seated (Max): 0.028" (0.70mm)
