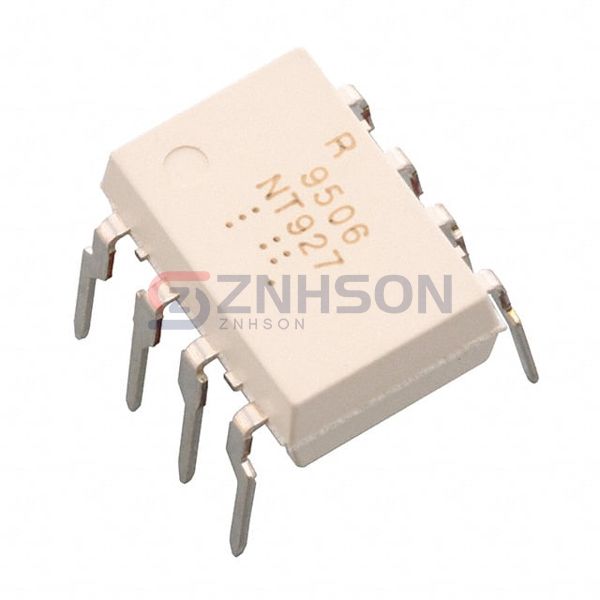

PS9506-V-AX
Renesas Electronics America Inc
Renesas Electronics America Inc
HI-SPD OPTOCPLR 8-PIN DIP
$3.34
Available to order
Reference Price (USD)
1+
$3.34000
500+
$3.3066
1000+
$3.2732
1500+
$3.2398
2000+
$3.2064
2500+
$3.173
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Trust Renesas Electronics America Inc PS9506-V-AX Gate Driver Isolators for unmatched isolation performance in critical applications. These isolators feature wide input voltage range, high surge immunity, and compact footprints, making them perfect for automotive, defense, and IoT applications. Depend on us for quality and innovation request a quote now!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 25kV/µs
- Propagation Delay tpLH / tpHL (Max): 400ns, 400ns
- Pulse Width Distortion (Max): 250ns
- Rise / Fall Time (Typ): 50ns, 50ns
- Current - Output High, Low: 400mA, 400mA
- Current - Peak Output: 600mA
- Voltage - Forward (Vf) (Typ): 1.56V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 10V ~ 30V
- Operating Temperature: -40°C ~ 110°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
- Approval Agency: CSA, SEMKO, UL, VDE
