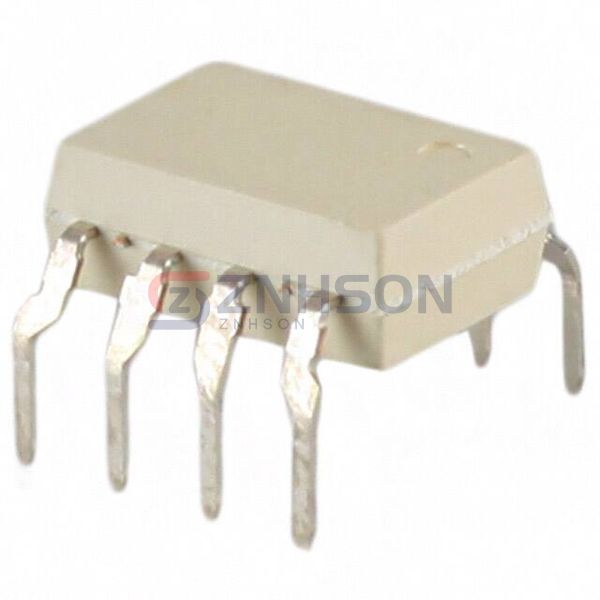

PS9505L1-AX
CEL
CEL
OPTOISO 5KV 1CH GATE DRIVER 8DIP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your systems with CEL PS9505L1-AX Gate Driver Isolators, engineered for superior isolation and efficiency. Key features include low propagation delay, high common-mode transient immunity, and wide temperature range compatibility. Perfect for renewable energy systems, automation controls, and medical equipment, these isolators deliver unmatched performance. Ready to optimize your design? Request a quote now!
Specifications
- Product Status: Discontinued at Digi-Key
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 25kV/µs
- Propagation Delay tpLH / tpHL (Max): 250ns, 250ns
- Pulse Width Distortion (Max): 100ns
- Rise / Fall Time (Typ): 50ns, 50ns
- Current - Output High, Low: 2A, 2A
- Current - Peak Output: 2.5A
- Voltage - Forward (Vf) (Typ): 1.56V
- Current - DC Forward (If) (Max): 25 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 110°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.400", 10.16mm)
- Supplier Device Package: 8-DIP
- Approval Agency: CSA, SEMKO, UL
