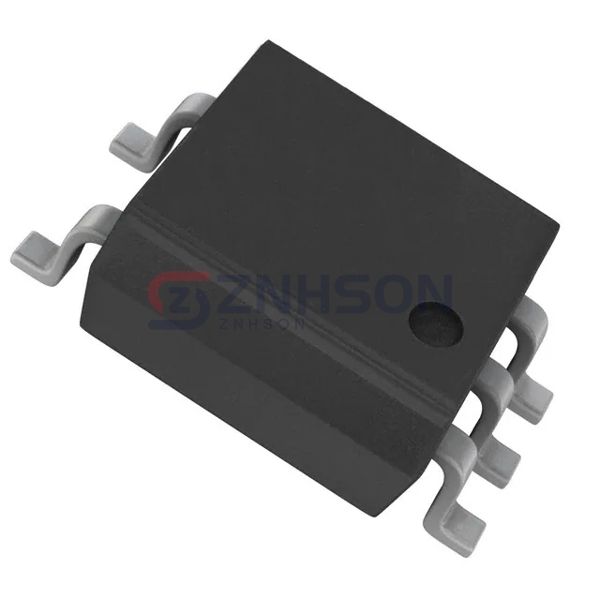

PS9122-L-AX
CEL
CEL
OPTOISO 3.75KV OPN COLLECTOR 5SO
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CEL PS9122-L-AX Optoisolators - Logic Output offer reliable and efficient signal isolation for modern electronics. With features like wide voltage range, high-speed switching, and compact form factor, they are ideal for use in automotive, industrial, and consumer electronics. Elevate your designs with CEL's quality. Request more information now!
Specifications
- Product Status: Discontinued at Digi-Key
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 15kV/µs
- Input Type: DC
- Output Type: Open Collector
- Current - Output / Channel: 20 mA
- Data Rate: 1Mbps
- Propagation Delay tpLH / tpHL (Max): 700ns, 500ns
- Rise / Fall Time (Typ): 60ns, 70ns
- Voltage - Forward (Vf) (Typ): 1.6V
- Current - DC Forward (If) (Max): 25mA
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.173", 4.40mm Width), 5 Leads
- Supplier Device Package: 5-SO
