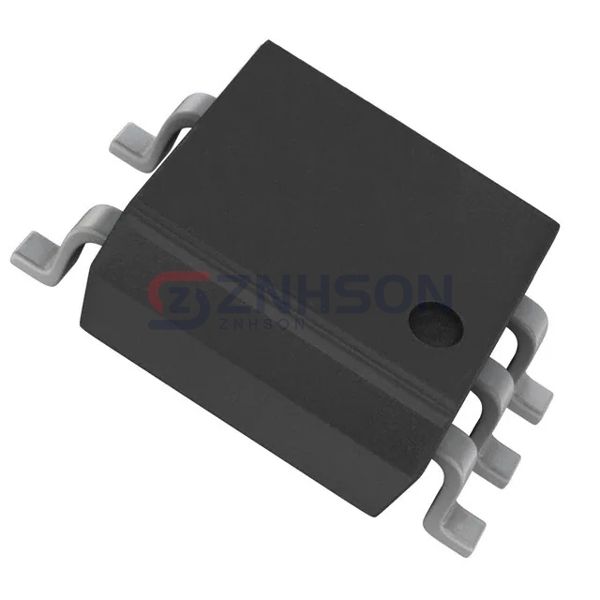

PS9122-AX
CEL
CEL
OPTOISO 3.75KV OPN COLLECTOR 5SO
$0.00
Available to order
Reference Price (USD)
960+
$1.47000
1,000+
$1.39650
2,500+
$1.33875
5,000+
$1.30200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CEL PS9122-AX Optoisolators - Logic Output are designed for high-performance signal isolation in critical applications. Featuring robust construction, high noise immunity, and fast response times, these isolators are perfect for use in harsh industrial environments, automotive systems, and smart grids. Partner with CEL for superior quality. Contact us for details!
Specifications
- Product Status: Obsolete
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 15kV/µs
- Input Type: DC
- Output Type: Open Collector
- Current - Output / Channel: 20 mA
- Data Rate: 1Mbps
- Propagation Delay tpLH / tpHL (Max): 700ns, 500ns
- Rise / Fall Time (Typ): 60ns, 70ns
- Voltage - Forward (Vf) (Typ): 1.6V
- Current - DC Forward (If) (Max): 25mA
- Voltage - Supply: 2.7V ~ 5.5V
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.173", 4.40mm Width), 5 Leads
- Supplier Device Package: 5-SO
