PRPC031DFAN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 62POS 2.54MM
$1.47
Available to order
Reference Price (USD)
1+
$1.47000
10+
$1.33700
25+
$1.25560
50+
$1.20100
100+
$1.14640
250+
$1.03724
500+
$0.95534
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PRPC031DFAN-RC Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 62
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.537" (13.63mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
5-147278-8
Samtec Inc.
TSM-104-01-LM-DH-A-K-TR
Samtec Inc.
TSM-121-02-T-DH-A

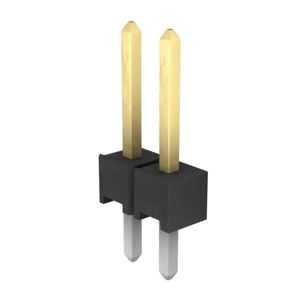

TE Connectivity AMP Connectors
4-102972-0-02

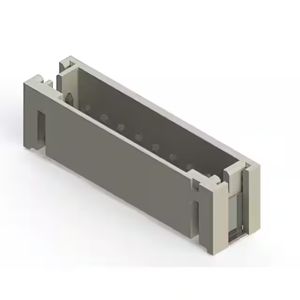

EDAC Inc.
140-509-417-011

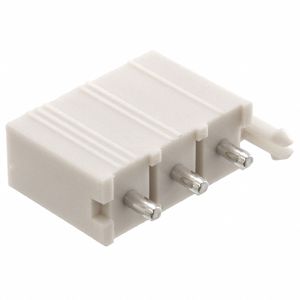

Molex
0039287038

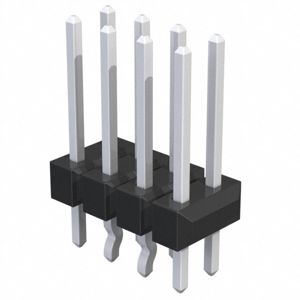

Molex
0702871051

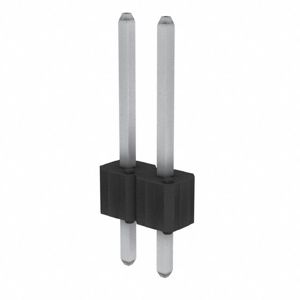

Amphenol ICC (FCI)
78229-402HLF

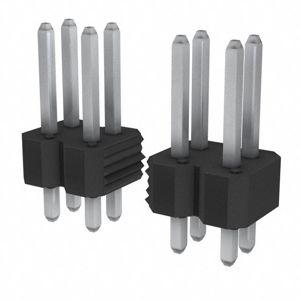

Amphenol ICC (FCI)
