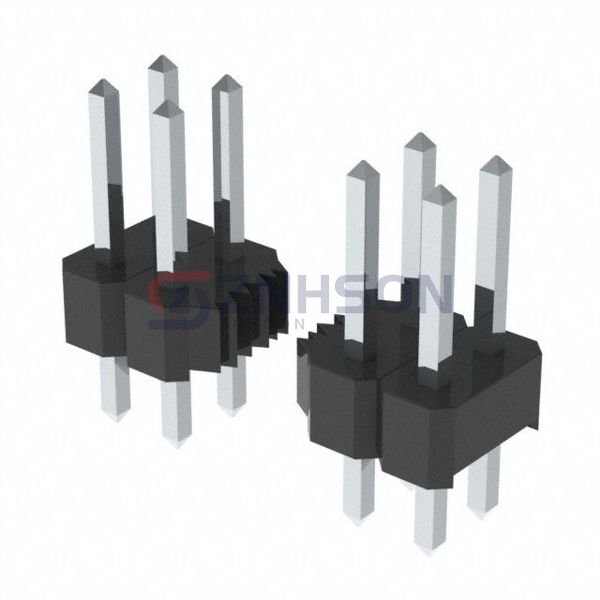

PREC036DAAN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 72POS 2.54MM
$1.24
Available to order
Reference Price (USD)
1+
$1.24000
10+
$1.09300
25+
$1.02920
50+
$0.98620
100+
$0.94330
250+
$0.85752
500+
$0.77176
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PREC036DAAN-RC Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 72
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.448" (11.39mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-120-04-L-DH-A-C
Samtec Inc.
HTSW-103-20-F-S
Preci-Dip
850-10-034-30-135101
Preci-Dip
894-80-093-20-001101
Samtec Inc.
TSM-111-02-T-DV
TE Connectivity AMP Connectors
1-440052-0
Preci-Dip
450-80-250-00-006101
Samtec Inc.
FTSH-125-04-LM-DH-C-TR
Amphenol ICC (FCI)

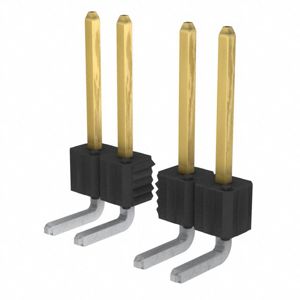

68458-210HLF
